Hood Disassembly/Assembly
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disassemble in the order indicated in the table.

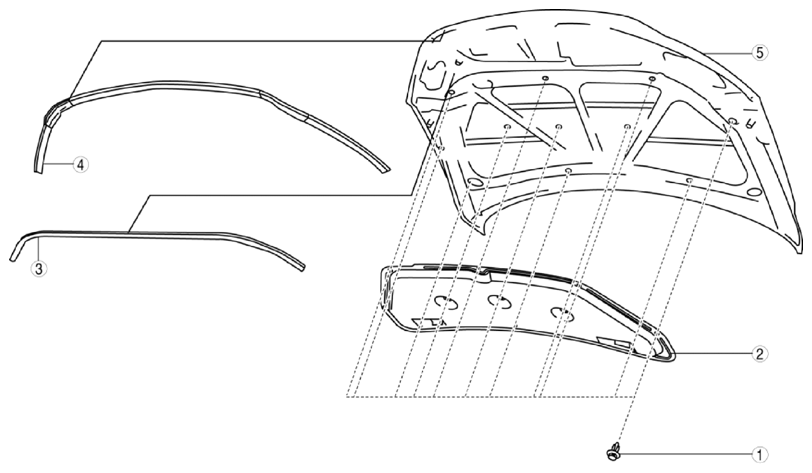

Courtesy of MAZDA MOTORS CORP. COMPONENT DESCRIPTION
| 1 |
Fastener |
| 2 |
Hood insulator |
| 3 |
Shroud seaming welt |
| 4 |
Weather strip parting seal |
| 5 |
Hood component |
- Assemble in the reverse order of disassembly.
