Front Fender Panel Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION .)
    2. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
    3. Front bumper slider (See BUMPER SLIDER REMOVAL/INSTALLATION .)
    4. Front over fender (See FRONT OVER FENDER REMOVAL/INSTALLATION .)
  3. Remove bolts A and fasteners B.

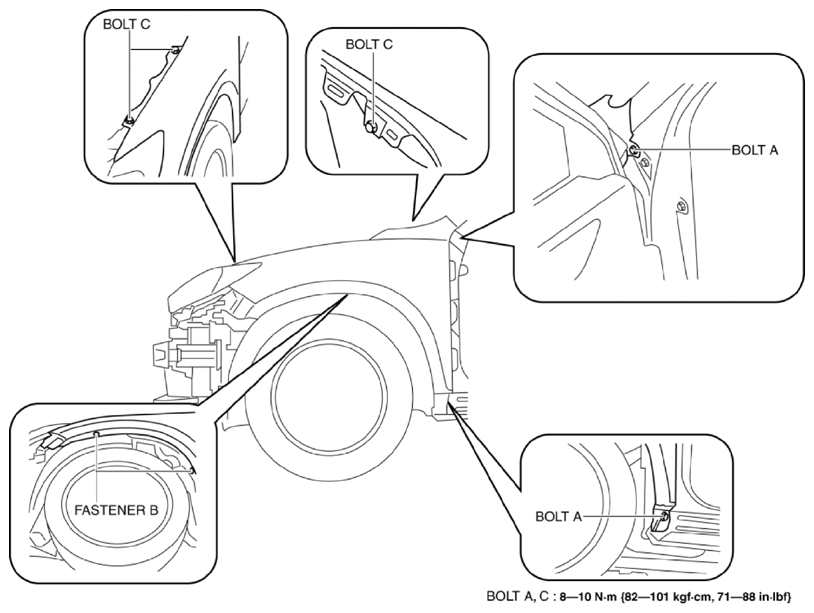

    Fig 1: Identifying Front Fender Panel Bolts And Fasteners With Torque Specification
    G10938326Courtesy of MAZDA MOTORS CORP.
  4. Remove bolts C.
  5. Remove the front fender panel.
  6. Install in the reverse order of removal.
  7. Adjust the headlight aiming. (See HEADLIGHT AIMING .)
