Fuel-Filler Lid Adjustment

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the gap and height difference between the fuel-filler lid and body.
Loosen the bolts and adjust the fuel-filler lid.

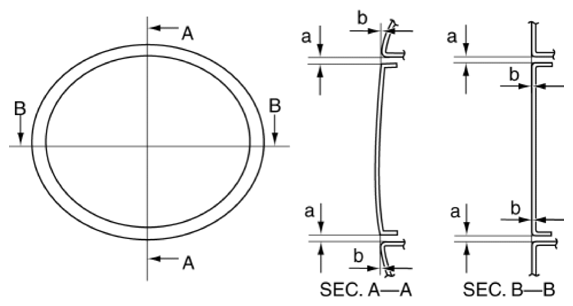

Fig 1: Checking Fuel-Filler Lid Clearance
Courtesy of MAZDA MOTORS CORP.

Standard clearance
- a: 1.7-3.7 mm {0.07-0.14 in}
- b: -0.5-1.5 mm {-0.01-0.05 in}
Tighten the bolts. (See FUEL-FILLER LID REMOVAL/INSTALLATION .)
