Rear Over Fender Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove fasteners A.

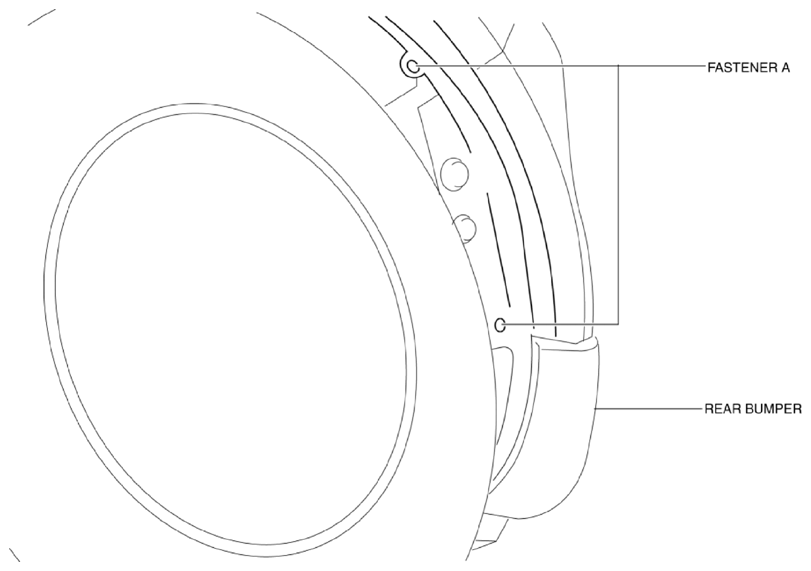

Fig 1: Identifying Rear Bumper And Fasteners A
Courtesy of MAZDA MOTORS CORP.
Pull the rear over fender in the direction of the arrow while removing clips B.

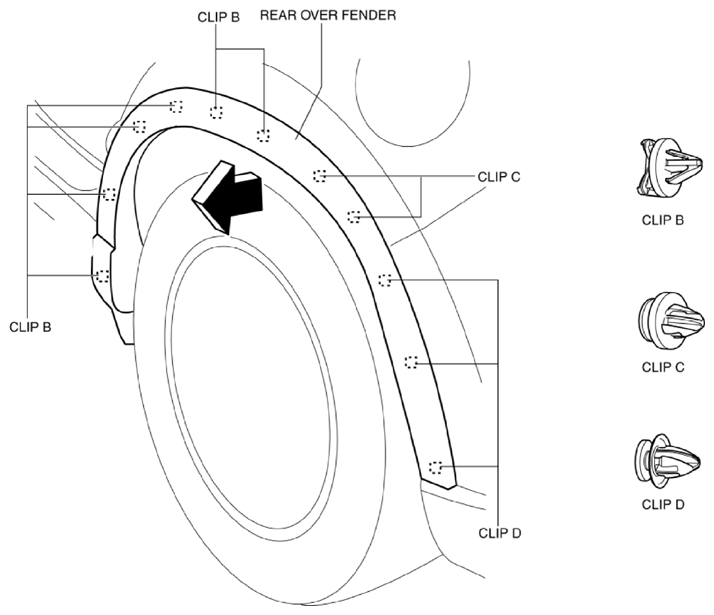

Fig 2: Pulling Rear Over Fender
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.

WARNING:

When installing the rear over fender, verify that clips B, C, D are not damaged, if they are damaged, replace them with new ones. Otherwise, the rear over fender may fall off while the vehicle is being driven, leading to a serious accident.
