Cowl Panel Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    2. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
    3. Windshield wiper motor (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION .)
    4. Keyless beeper (See KEYLESS BEEPER REMOVAL/INSTALLATION .)
  3. Remove clips A.

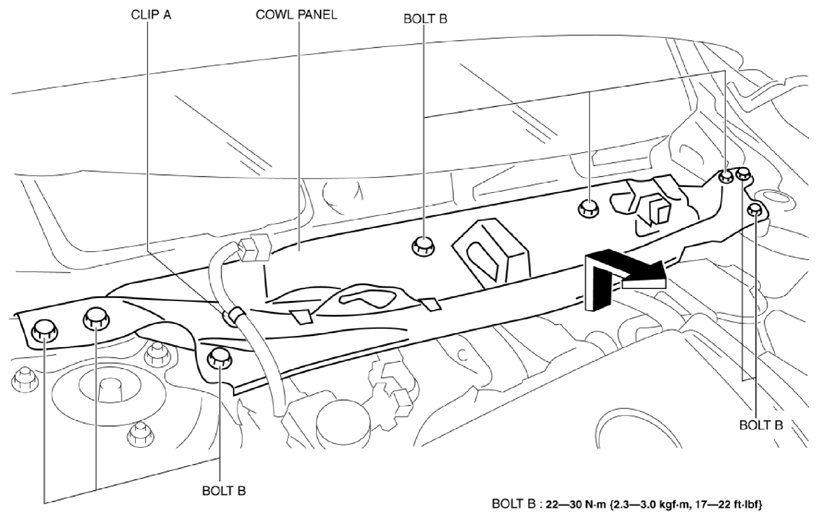

    Fig 1: Removing Cowl Panel
    G10938339Courtesy of MAZDA MOTORS CORP.
  4. Remove bolts B.
  5. Remove the cowl panel in the direction of the arrow shown in the figure.
  6. Install in the reverse order of removal.
