Rear Bumper Reinforcement Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION .)
    2. Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
    3. Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION .)
  3. Remove the hanger rubber in the direction of the arrow (1) shown in the figure.

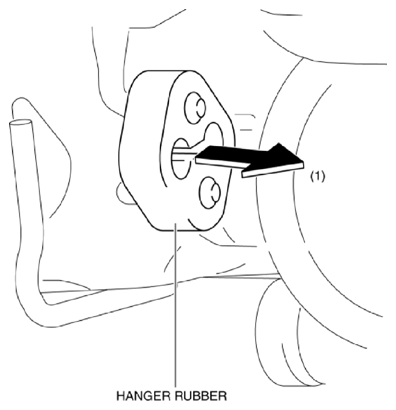

    Fig 1: Removing Hanger Rubber
    G10938324Courtesy of MAZDA MOTORS CORP.
  4. Remove nuts.
    CAUTION:
    • Removing the rear bumper reinforcement without supporting it could cause the rear bumper reinforcement to fall and cause serious injury. Always perform the procedure with at least another person to prevent the rear bumper reinforcement from falling.

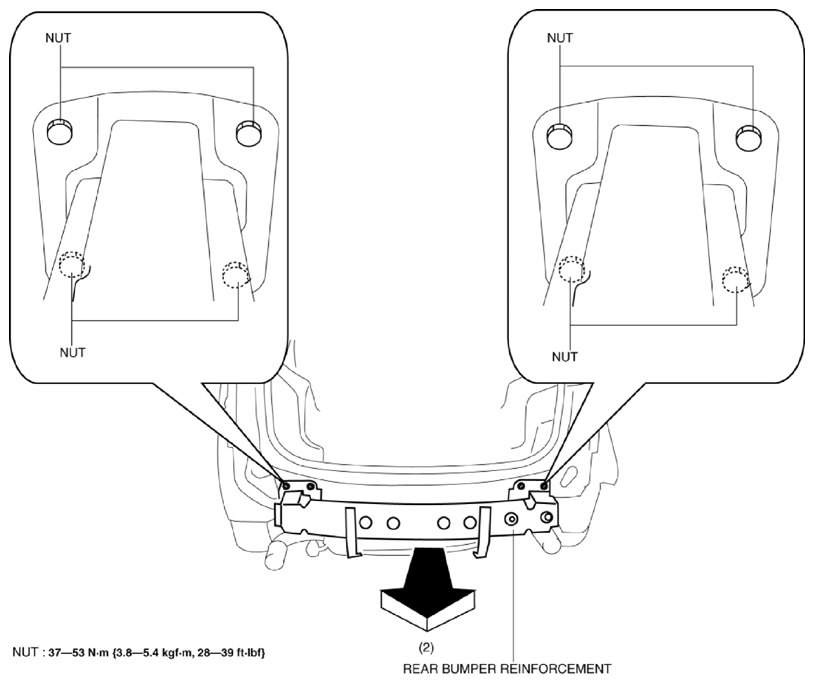

    Fig 2: Removing Rear Bumper Reinforcement
    G10938325Courtesy of MAZDA MOTORS CORP.
  5. Remove the rear bumper reinforcement in the direction of the arrow (2) shown in the figure.
  6. Install in the reverse order of removal.
