Exterior Trim Location Index

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

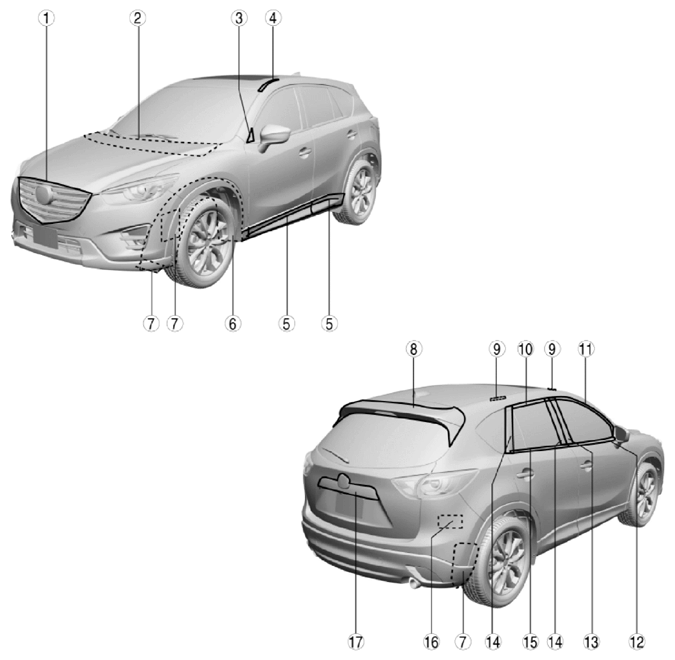

Fig 1: Exterior Trim Components (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Radiator grille (See RADIATOR GRILLE REMOVAL/INSTALLATION .) (See RADIATOR GRILLE DISASSEMBLY/ASSEMBLY .)
2	Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
3	Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION .)
4	Roof molding (See ROOF MOLDING REMOVAL .) (See ROOF MOLDING INSTALLATION .)
5	Side garnish (See SIDE GARNISH REMOVAL .) (See SIDE GARNISH INSTALLATION .)
6	Mudguard (See MUDGUARD REMOVAL/INSTALLATION .)
7	Splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION .)
8	Rear spoiler (See REAR SPOILER REMOVAL/INSTALLATION .)
9	Roof carrier bracket (See ROOF CARRIER BRACKET REMOVAL/INSTALLATION .)
10	Rear sash molding (See REAR SASH MOLDING REMOVAL .) (See REAR SASH MOLDING INSTALLATION .)
11	Front sash molding (See FRONT SASH MOLDING REMOVAL .) (See FRONT SASH MOLDING INSTALLATION .)
12	Front beltline molding (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION .)
13	Front door garnish (See FRONT DOOR GARNISH REMOVAL/INSTALLATION .)
14	Rear door garnish (See REAR DOOR GARNISH REMOVAL/INSTALLATION .)
15	Rear beltline molding (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION .)
16	Extractor chamber (See EXTRACTOR CHAMBER REMOVAL/INSTALLATION .)
17	Liftgate garnish (See LIFTGATE GARNISH REMOVAL/INSTALLATION .)

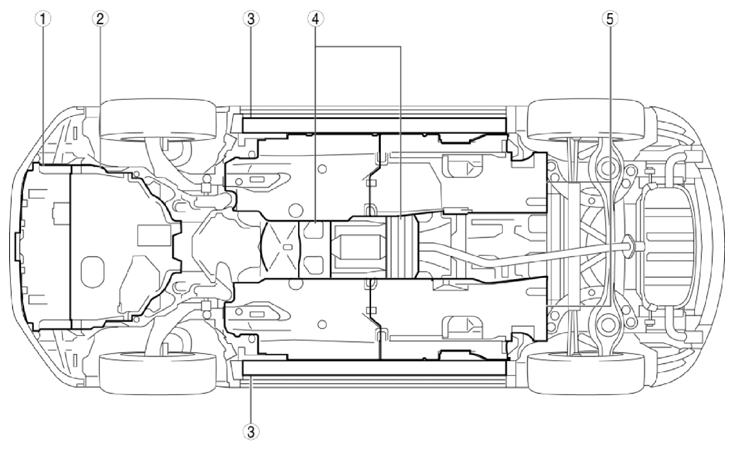

Fig 2: Exterior Trim Components (2 Of 2)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Front under cover No. 1 (See FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .)
2	Front under cover No. 2 (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
3	Side step molding (See SIDE STEP MOLDING REMOVAL/INSTALLATION .)
4	Center under cover (See CENTER UNDER COVER REMOVAL/INSTALLATION .)
5	Floor under cover (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
