Side Step Molding Removal/Installation
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Set the rear over fender aside. (See REAR OVER FENDER REMOVAL/INSTALLATION .)

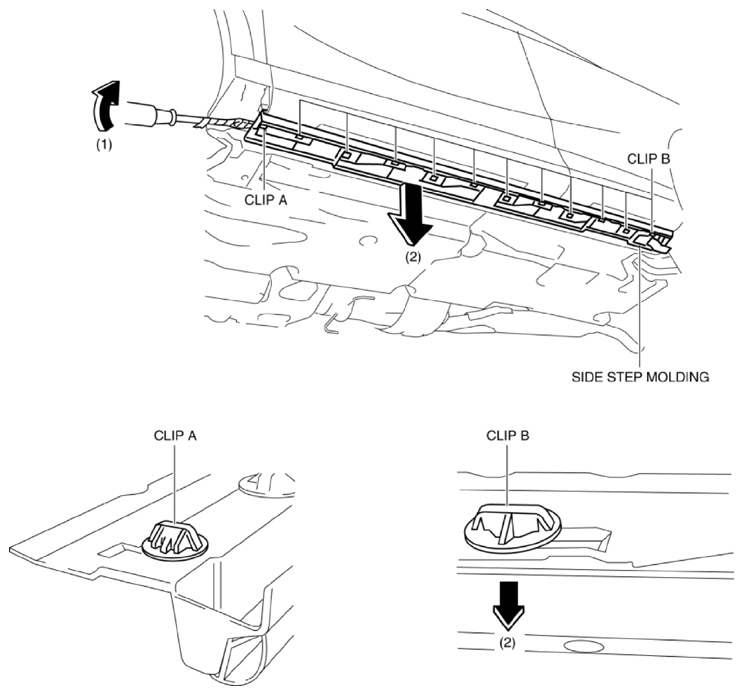

- Insert a tape-wrapped flathead screwdriver shown in the figure and remove the clip A in the direction of arrow (1).
- Slide the side step molding in the direction of the arrow (2) shown in the figure and remove clips B from side step molding.
- After removing the side step molding, remove clip A, clips B from the body using a fastener remover.
- Install clip A, clips B to the side step molding.
- Install in the reverse order of removal.
