Roof Molding Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Install the roof molding to the front T-studs.

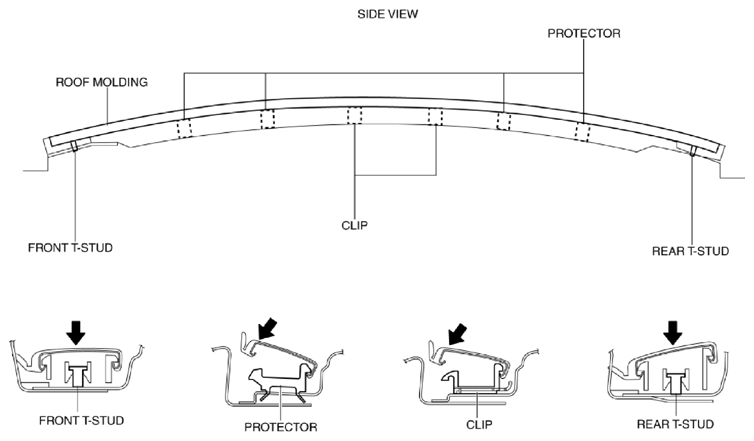

Fig 1: Installing Roof Molding To Front T-Studs
Courtesy of MAZDA MOTORS CORP.
Hook the roof molding to clips and attach the roof molding while pressing it in the direction of the arrow shown in the figure.
Install the roof molding to the rear T-stud.
Press in the protectors installation positions shown in the figure and firmly adhere them to the body.
