Mudguard Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove screw A and bolt B then, partially peel back the front under cover No. 1.

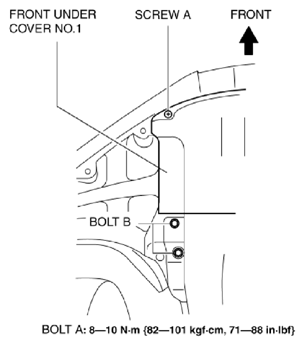

    Fig 1: Removing Front Under Cover
    G10938965Courtesy of MAZDA MOTORS CORP.
  2. Remove the front over fender. (See FRONT OVER FENDER REMOVAL/INSTALLATION .)
  3. Remove screw C and D.
  4. Remove fasteners E.

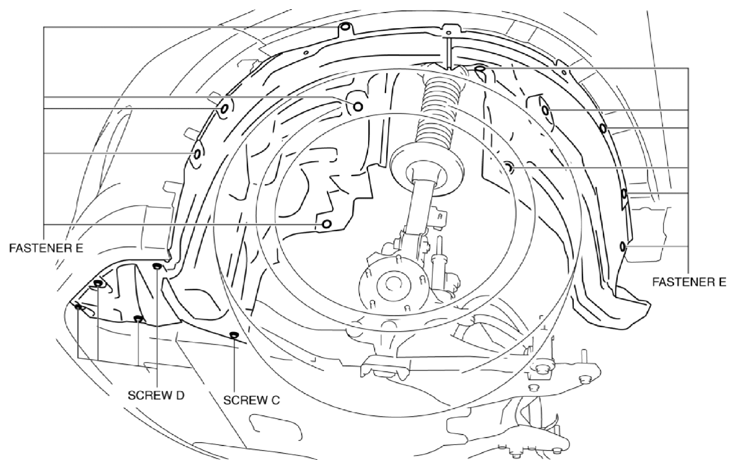

    Fig 2: Identifying Front Over Fender Fasteners
    G10938966Courtesy of MAZDA MOTORS CORP.
  5. Pull the mudguard in the direction of the arrow shown in the figure.

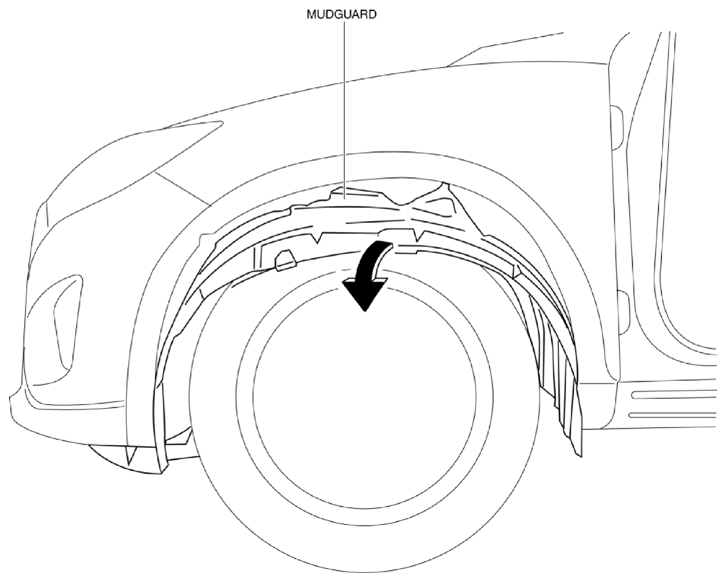

    Fig 3: Pulling Out Mudguard
    G10938967Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
