Cowl Grille Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)

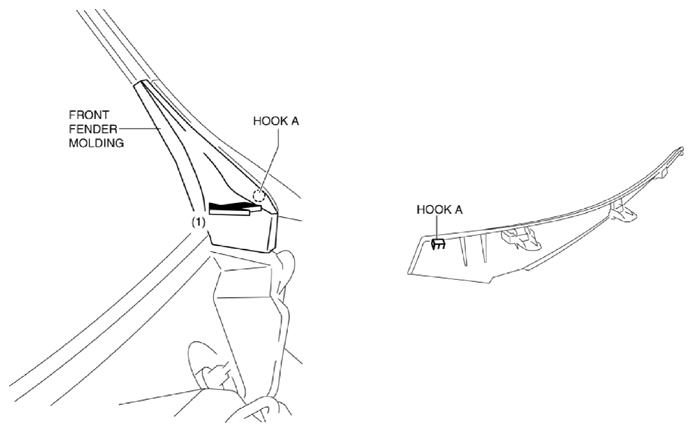

Pull the front fender molding in the direction of the arrow (1) while detaching hook A.

Fig 1: Pulling Front Fender Molding (Hook A)
Courtesy of MAZDA MOTORS CORP.

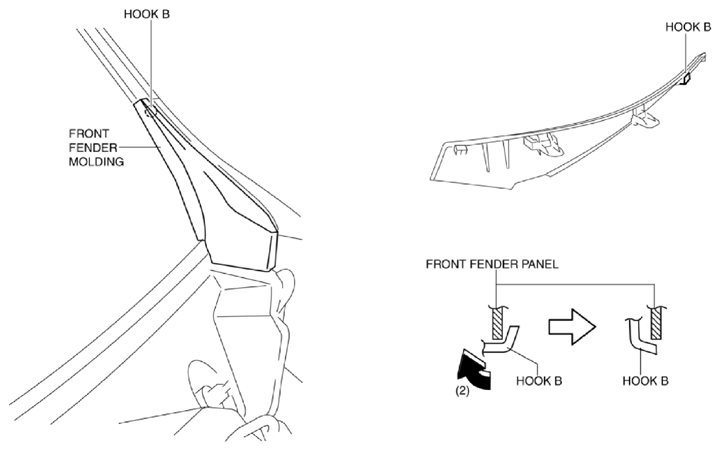

Pull the front fender molding in the direction of the arrow (2) while detaching hook B.

Fig 2: Pulling Front Fender Molding (Hook B)
Courtesy of MAZDA MOTORS CORP.

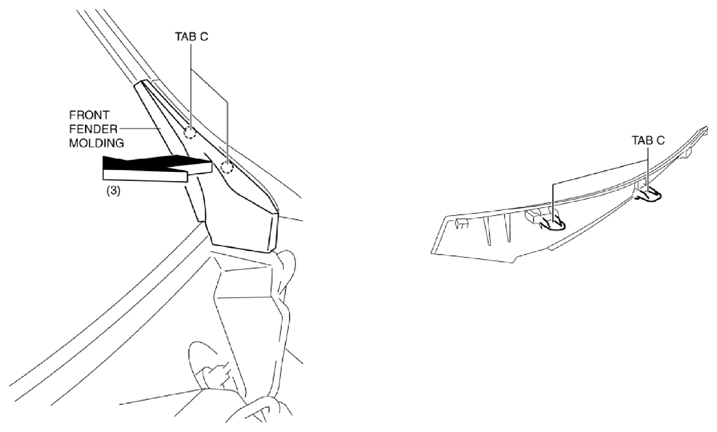

Pull the front fender molding in the direction of the arrow (3) and remove it while detaching tab C.

Fig 3: Pulling Front Fender Molding (Tab C)
Courtesy of MAZDA MOTORS CORP.

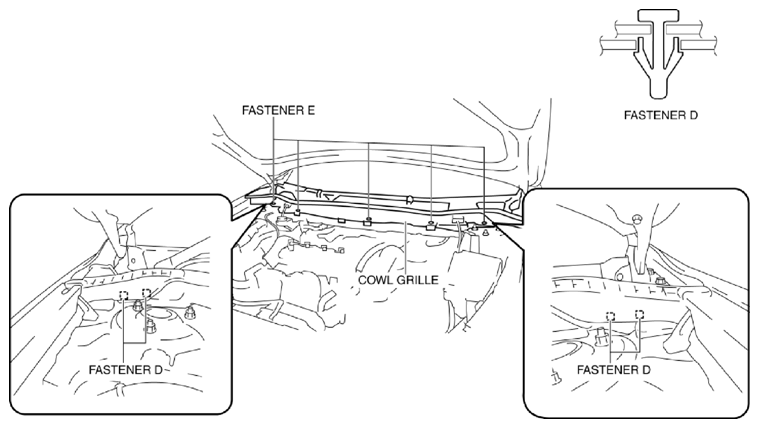

Remove fasteners D shown in the figure.

Fig 4: Identifying Cowl Grille Fasteners
Courtesy of MAZDA MOTORS CORP.
Remove fasteners E shown in the figure.
Disconnect the join pipe A of the windshield washer hose. (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION .)

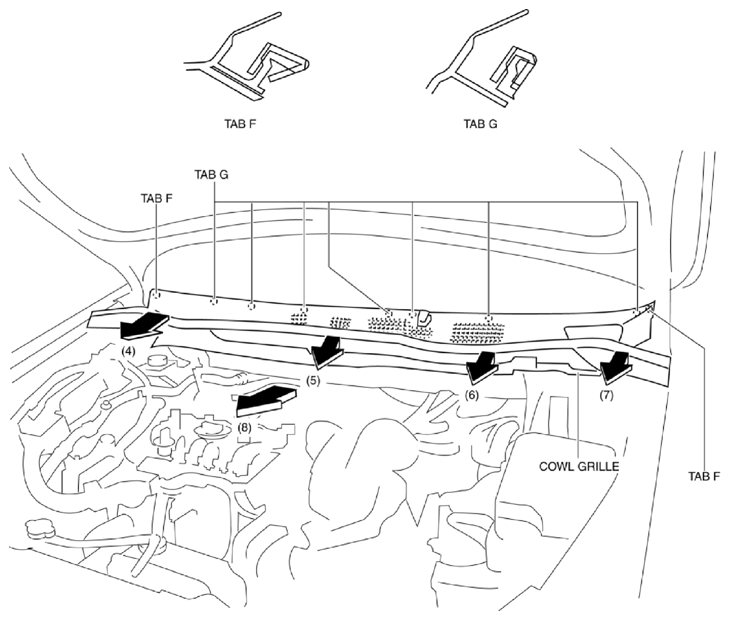

Pull the cowl grille in the direction of the arrow in the order of (4), (5), (6), (7), (8) and remove it while detaching tabs F, tabs G.

Fig 5: Removing Cowl Grille
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
