Extractor Chamber Removal/Installation
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION .)
- Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
- Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION .)

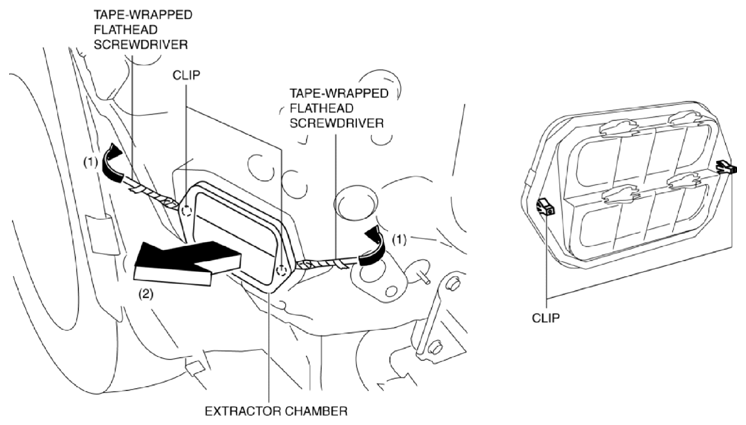

- Insert a tape-wrapped flathead screwdriver shown in the figure and remove clips in the direction of arrow (1).
- Remove the extractor chamber in the direction of arrow (2).
- Install in the reverse order of removal.
