Center Under Cover Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Lift up the vehicle.
Remove the floor under cover. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
Remove bolts.

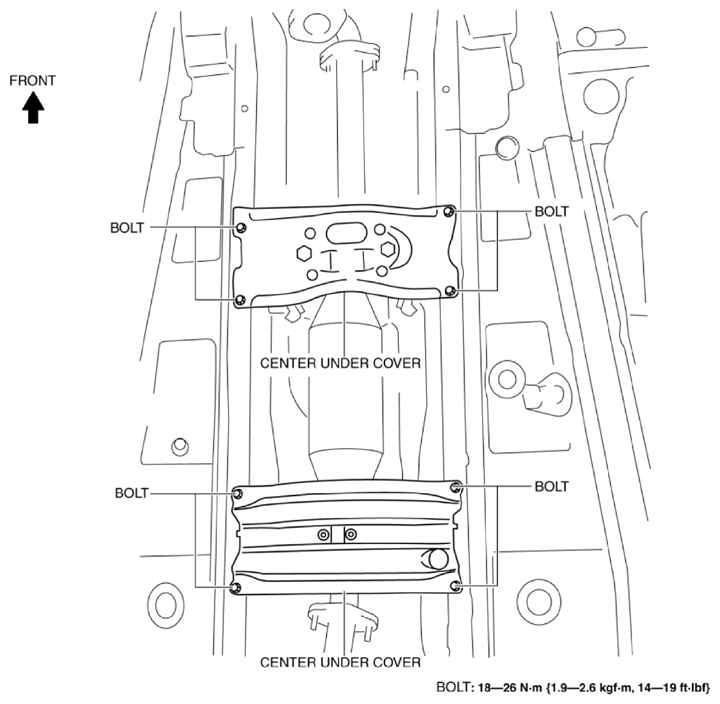

Fig 1: Identifying Center Under Cover Bolts With Torque Specifications (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

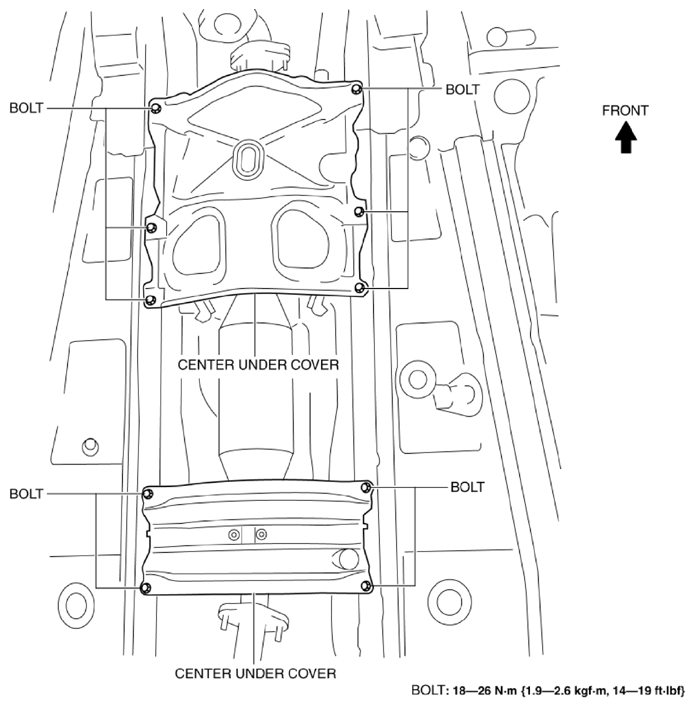

Fig 2: Identifying Center Under Cover Bolts With Torque Specifications (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Remove the center under cover.
Install in the reverse order of removal.
