Rear BELTLINE Molding Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Affix protective tape to the position shown in the figure.

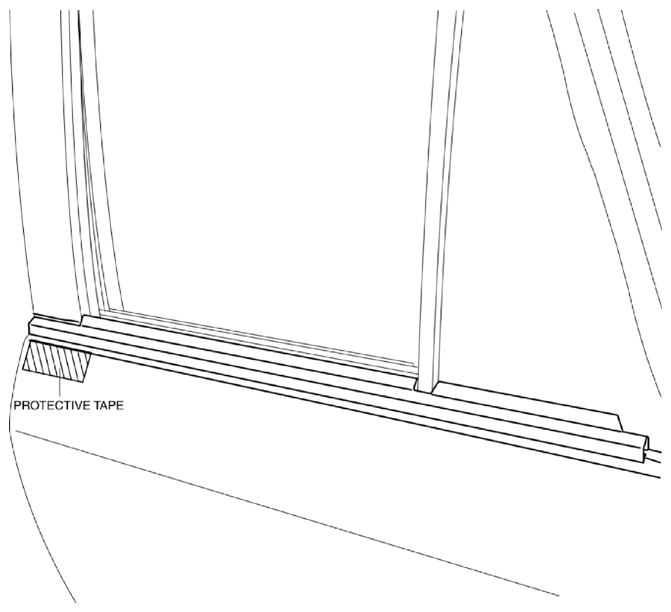

Fig 1: Identifying Rear Beltline Molding Protective Tape
G10938956Courtesy of MAZDA MOTORS CORP.
  1. Fully open the rear door glass.
  2. Insert a tape-wrapped flathead screwdriver and then detach the clip A in the direction of arrow (1) shown in the figure.
  3. Pull up the rear belt line molding in the direction of arrow (2) shown in the figure.
  4. Rotate the rear beltline molding in the direction of the arrow (3) shown in the figure and remove it while detaching tabs B.

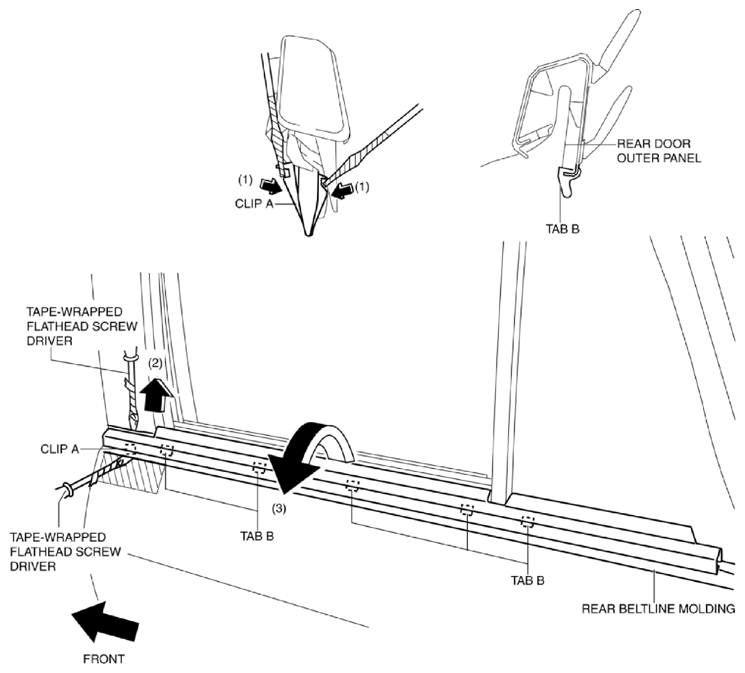

    Fig 2: Rotating Rear Beltline Molding
    G10938957Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
