Front Sash Molding Removal

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.

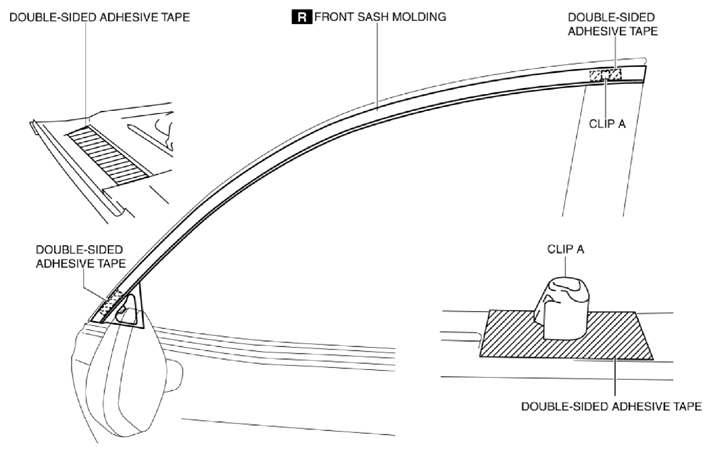

Using a utility knife, carefully remove the double-sided adhesive tape in the locations shown below.
CAUTION:
- When removing the double-sided adhesive tape, be careful not to damage clip A.
Fig 1: Identifying Front Sash Molding Clips
Courtesy of MAZDA MOTORS CORP.

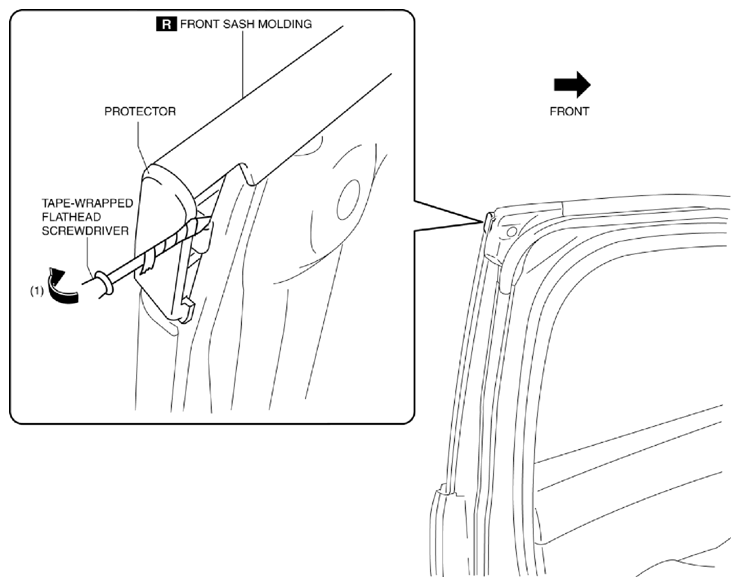

Insert a tape-wrapped flathead screwdriver shown in the figure and remove the protector in the direction of arrow (1).

Fig 2: Removing Protector
Courtesy of MAZDA MOTORS CORP.

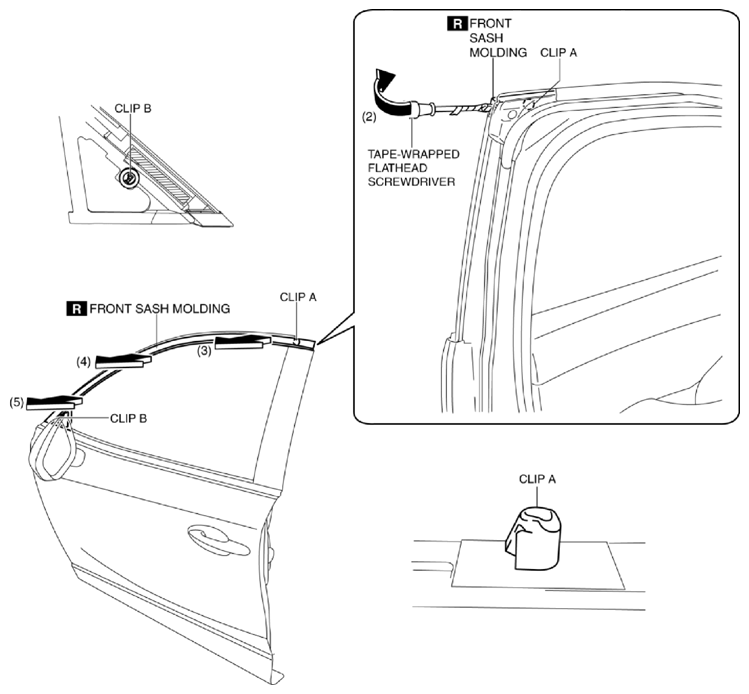

Insert a tape-wrapped flathead screwdriver shown in the figure and remove clip A in the direction of arrow (2).

Fig 3: Removing Front Sash Molding Clips
Courtesy of MAZDA MOTORS CORP.
Remove the front sash molding in the direction of arrow in the order of (3), (4), (5) while detaching clip B.
Install in the reverse order of removal.
