FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Lift up the vehicle.
Remove the front under cover No. 1. (See FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .)
Remove bolts A.

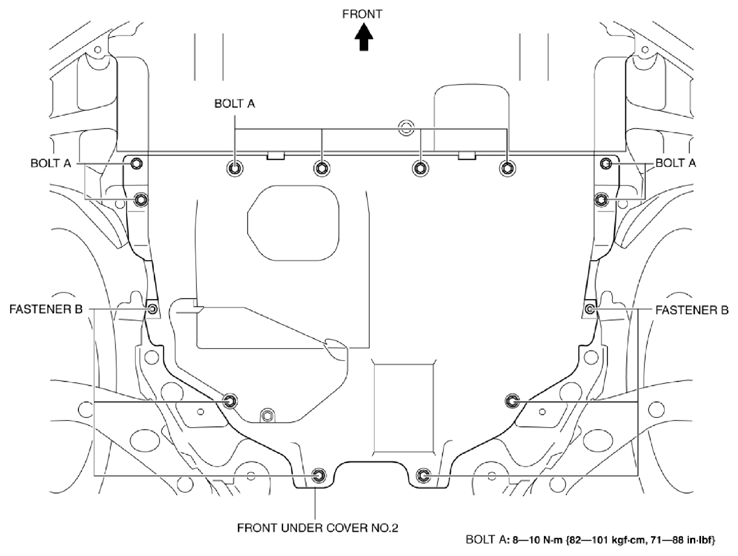

Fig 1: Removing Front Under Cover
Courtesy of MAZDA MOTORS CORP.
Remove fasteners B.
Remove the front under cover No. 2.
Install in the reverse order of removal.
