Floor Under Cover Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift up the vehicle.
  2. Remove bolts A.

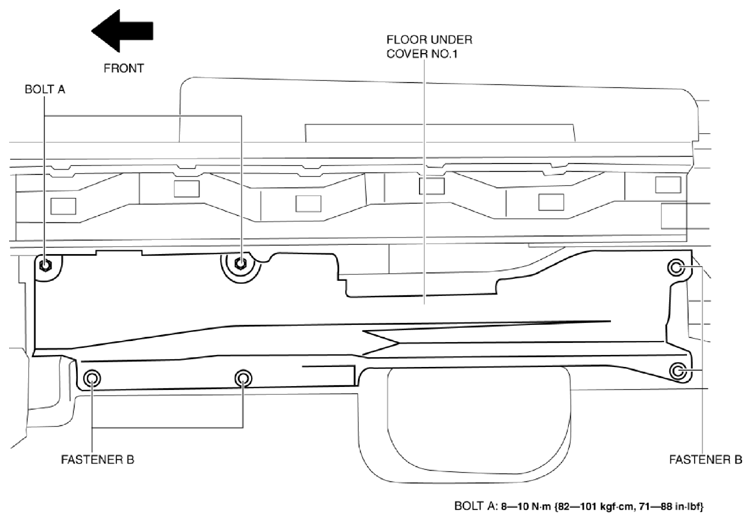

    Fig 1: Identifying Floor Under Cover Bolts With Torque Specifications
    G10938974Courtesy of MAZDA MOTORS CORP.
  3. Remove fasteners B.
  4. Remove the floor under cover No. 1.
  5. Remove nuts C.

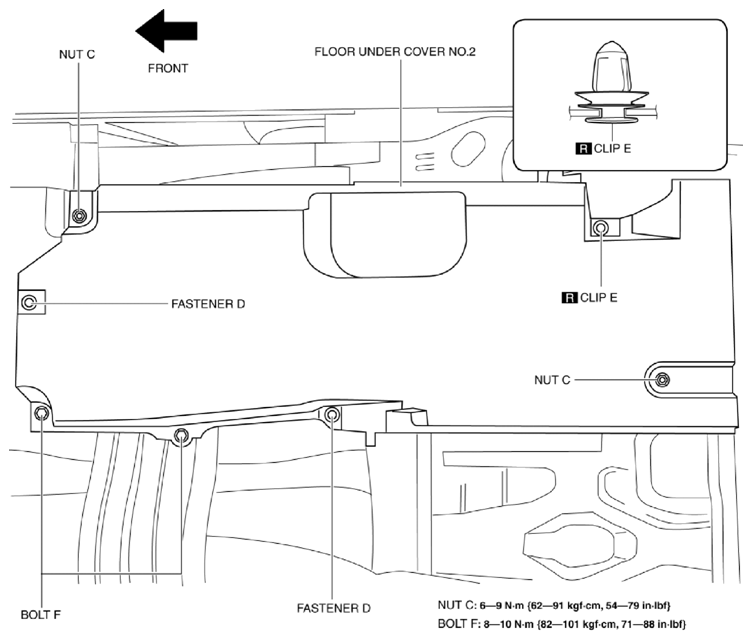

    Fig 2: Identifying Floor Under Cover Nuts With Torque Specifications
    G10938975Courtesy of MAZDA MOTORS CORP.
  6. Remove fasteners D.
  7. Remove clip E
  8. Remove bolts F.
  9. Remove the floor under cover No. 2.
  10. Remove bolts G.

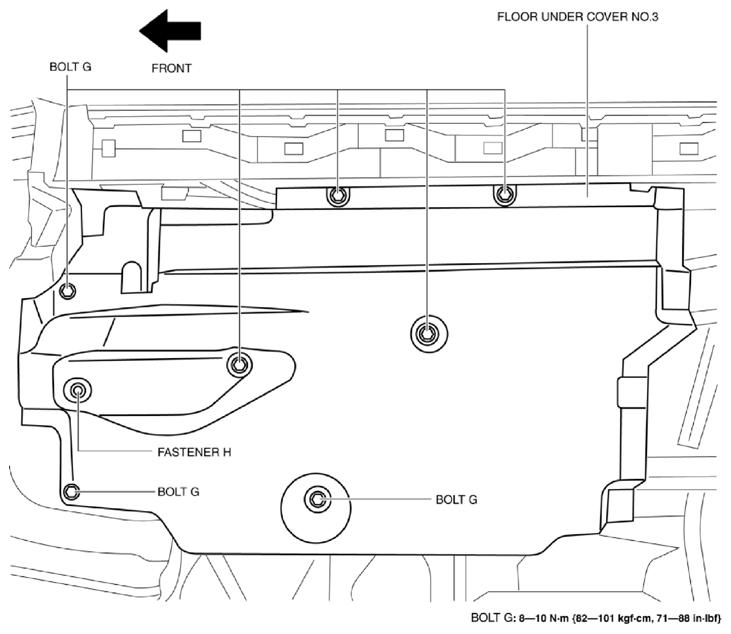

    Fig 3: Identifying Floor Under Cover Nuts With Torque Specifications
    G10938976Courtesy of MAZDA MOTORS CORP.
  11. Remove the fastener H.
  12. Remove the floor under cover No. 3.
  13. Install in the reverse order of removal.
