Side Garnish Removal

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Install clip A.

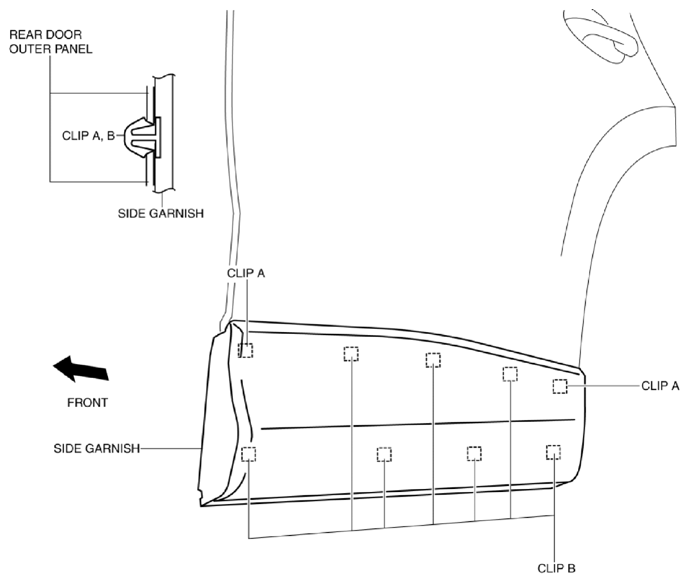

Fig 1: Installing Side Garnish Clip (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

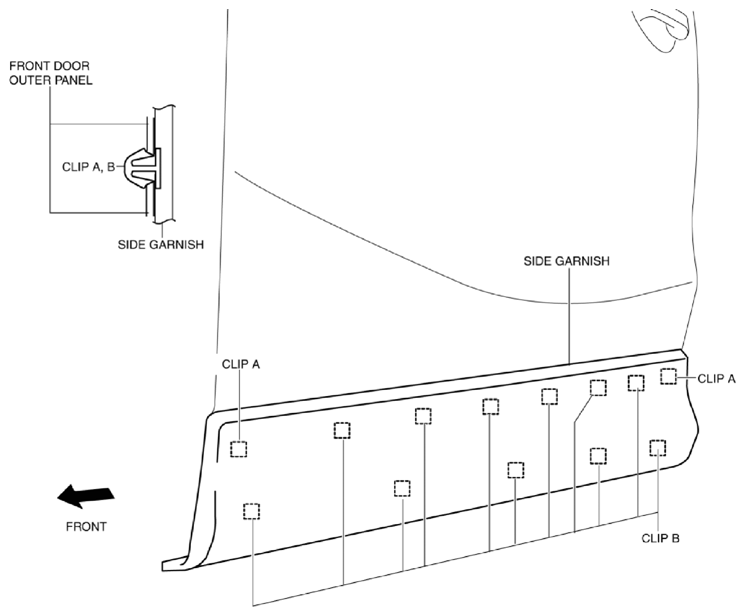

Fig 2: Installing Side Garnish Clip (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Install clip B to the vehicle from the front side.
