FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove bolts A.

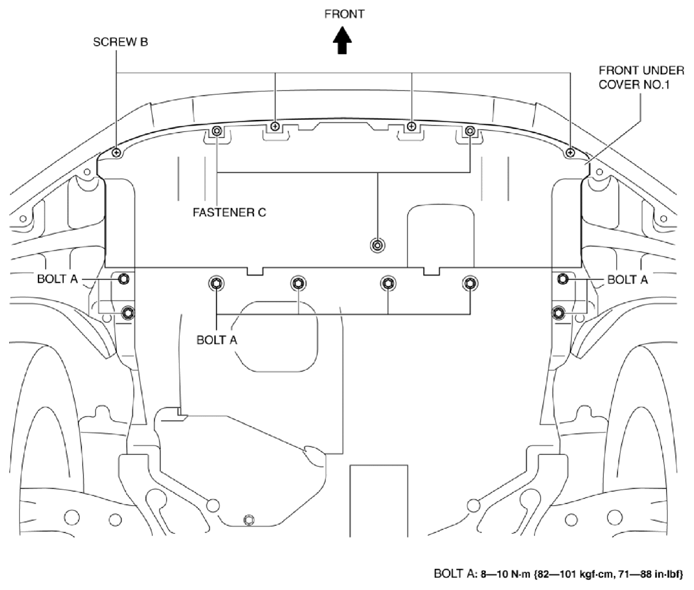

Fig 1: Identifying Front Under Cover Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove screws B.
Remove fasteners C.
Remove the front under cover No. 1 in the direction of the arrow in the order of (1), (2) shown in the figure while detaching the guide D.

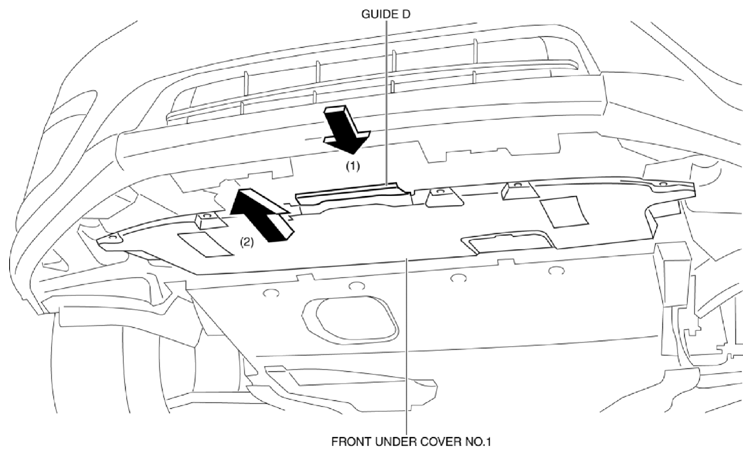

Fig 2: Removing Front Under Cover
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
