Radiator Grille Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION )
Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION )
Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION )
Remove the screws.

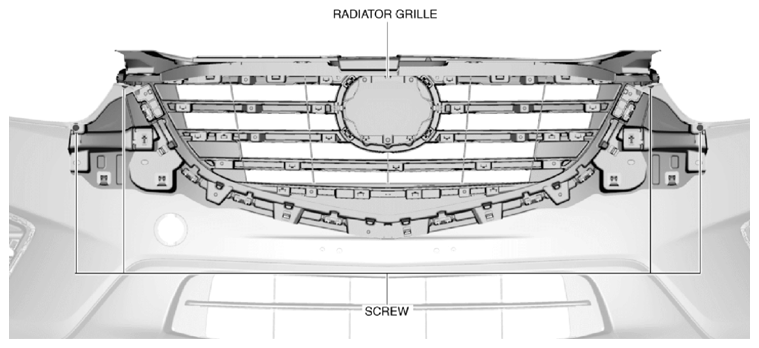

Fig 1: Identifying Radiator Grille
Courtesy of MAZDA MOTORS CORP.
Detach the tabs of the front bumper face from the radiator grille.

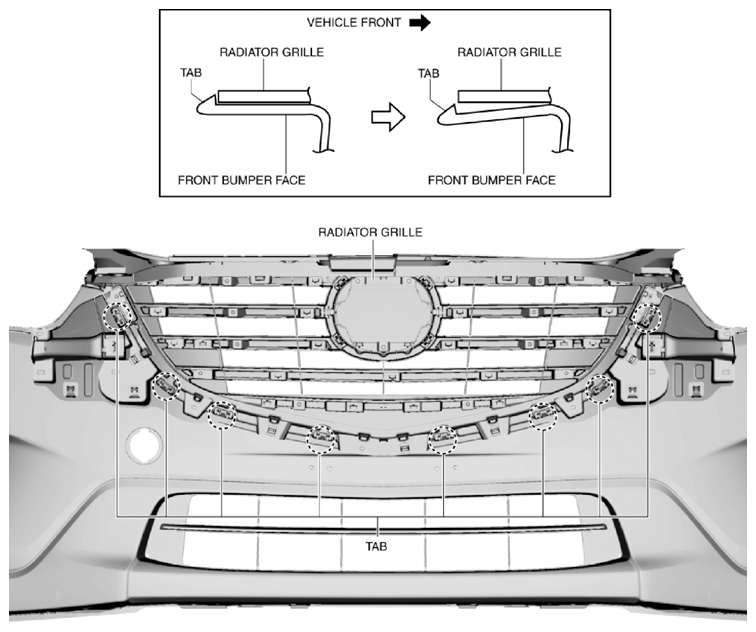

Fig 2: Detaching Front Bumper Face Tabs From Radiator Grille
Courtesy of MAZDA MOTORS CORP.
Remove the radiator grille.
Install in the reverse order of removal.
