Sail Garnish Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front door.
  2. Affix protective tape to the position shown in the figure.

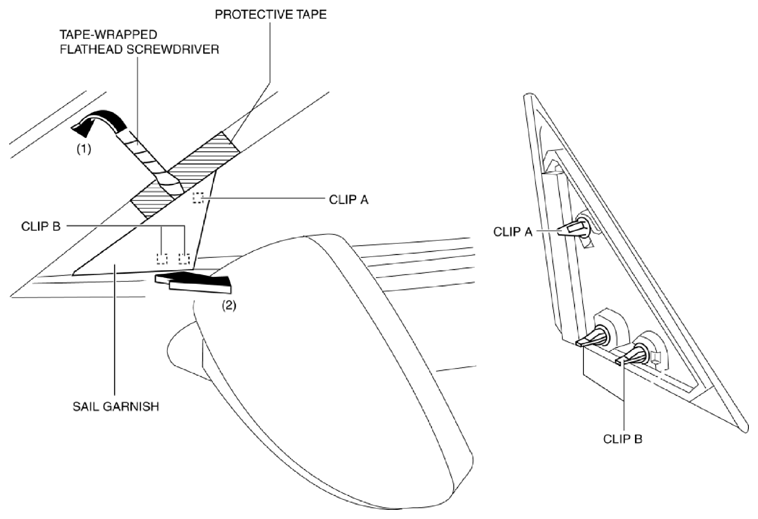

    Fig 1: Removing Sail Garnish
    G10938934Courtesy of MAZDA MOTORS CORP.
  3. Insert a tape-wrapped flathead screwdriver into the shown in the figure and remove the clip A in the direction of arrow (1).
  4. Pull the sail garnish in the direction of the arrow (2) and remove it while detaching clips B.
  5. Install in the reverse order of removal.
