Interior Trim Location Index

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

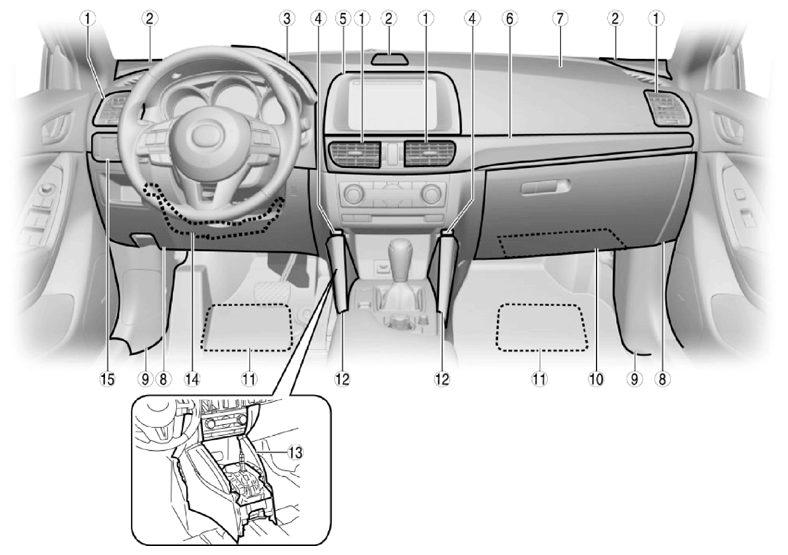

Fig 1: Interior Trim Components Location (1 Of 3)
G10938992Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Ventilator grille
(See VENTILATOR GRILLE REMOVAL/INSTALLATION .)
2 Speaker grille
(See SPEAKER GRILLE REMOVAL/INSTALLATION .)
3 Meter hood
(See METER HOOD REMOVAL/INSTALLATION .)
4 Console side bezel
(See CONSOLE SIDE BEZEL REMOVAL/INSTALLATION .)
5 Center panel
(See CENTER PANEL REMOVAL/INSTALLATION .)
6 Decoration panel
(See DECORATION PANEL REMOVAL/INSTALLATION .)
7 Dashboard
(See DASHBOARD REMOVAL/INSTALLATION .)
(See DASHBOARD DISASSEMBLY/ASSEMBLY .)
8 Lower panel
(See LOWER PANEL REMOVAL/INSTALLATION .)
9 Front side trim
(See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
10 Dashboard under cover
(See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
11 Floor insulator
(See FLOOR INSULATOR REMOVAL/INSTALLATION .)
12 Console side panel
(See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
13 Front console
(See FRONT CONSOLE REMOVAL/INSTALLATION .)
14 Knee bolster
(See KNEE BOLSTER REMOVAL/INSTALLATION .)
15 Switch panel
(See switch panel removal/installation .)

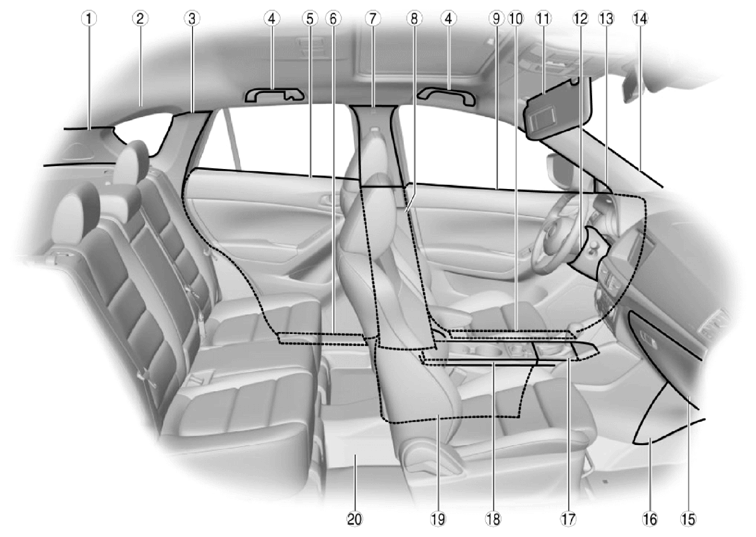

Fig 2: Interior Trim Components Location (2 Of 3)
G10938993Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 D-pillar trim
(See D-PILLAR TRIM REMOVAL/INSTALLATION .)
2 Headliner
(See HEADLINER REMOVAL/INSTALLATION .)
3 C-pillar trim
(See C-PILLAR TRIM REMOVAL/INSTALLATION .)
4 Assist handle
(See assist handle removal/installation .)
5 Rear door trim
(See rear door trim removal/installation .)
(See rear door trim disassembly/assembly .)
6 Rear scuff plate
(See rear scuff plate removal/installation .)
7 B-pillar upper trim
(See B-PILLAR UPPER trim removal/installation .)
8 B-pillar lower trim
(See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .
9 Front door trim
(See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
(See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY .)
10 Front scuff plate
(See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
11 Sunvisor
(See sunvisor removal/installation .)
12 Column cover
(See COLUMN cover removal/installation .)
13 Inner garnish
(See inner garnish removal/installation .)
14 A-pillar trim
(See a-pillar trim removal/installation .)
15 Glove compartment
(See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
16 Side wall
(See SIDE WALL REMOVAL/INSTALLATION .)
17 Shift panel
(See SHIFT PANEL REMOVAL/INSTALLATION .)
18 Upper panel
(See UPPER PANEL REMOVAL/INSTALLATION .)
19 Rear console
(See REAR CONSOLE REMOVAL/INSTALLATION .)
(See REAR CONSOLE DISASSEMBLY/ASSEMBLY .)
(See CONSOLE LID REMOVAL/INSTALLATION .)
(See CONSOLE LID HINGE REMOVAL/INSTALLATION .)
20 Floor covering
(See FLOOR COVERING REMOVAL/INSTALLATION .)

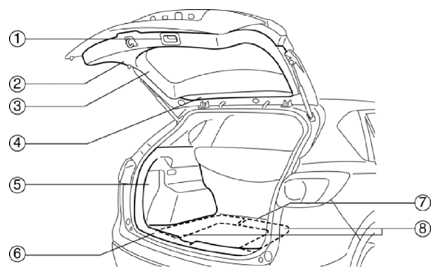

Fig 3: Interior Trim Components Location (3 Of 3)
G10938994Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Liftgate recess
(See LIFTGATE RECESS REMOVAL/INSTALLATION .)
2 Liftgate lower trim
(See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
3 Liftgate side trim
(See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
4 Liftgate upper trim
(See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
5 Trunk side trim
(See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
6 Trunk end trim
(See TRUNK END TRIM REMOVAL/INSTALLATION .)
7 Trunk covering
(See TRUNK COVERING REMOVAL/INSTALLATION .)
8 Trunk board
(See TRUNK BOARD REMOVAL/INSTALLATION .)
