Inner Garnish Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Take the shaded area shown in the figure, and pull the inner garnish in the direction of the arrow (1) while detaching clips.

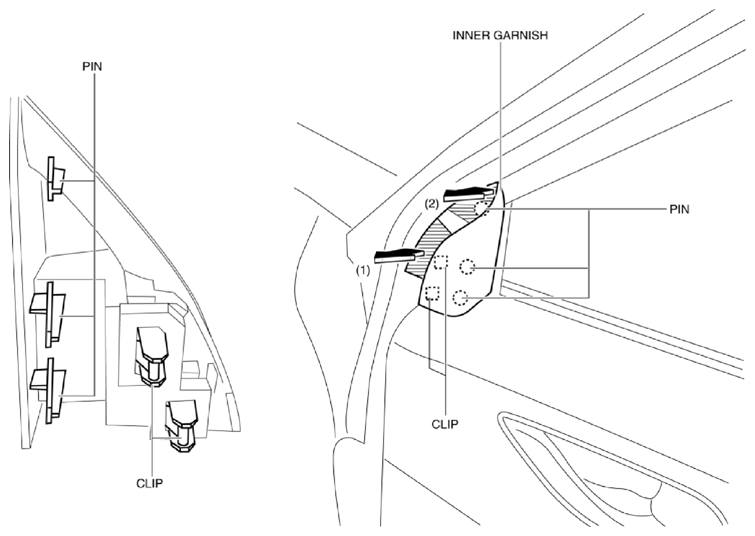

    Fig 1: Pulling Inner Garnish
    G10939088Courtesy of MAZDA MOTORS CORP.
  2. Take the shaded area shown in the figure, and remove the inner garnish in the direction of the arrow (2) while detaching pins.
  3. Install in the reverse order of removal.
