Console Lid Hinge Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console lid. (See CONSOLE LID REMOVAL/INSTALLATION .)
  2. Remove the inner console lid. (See CONSOLE LID REMOVAL/INSTALLATION .)
  3. Remove the screw.

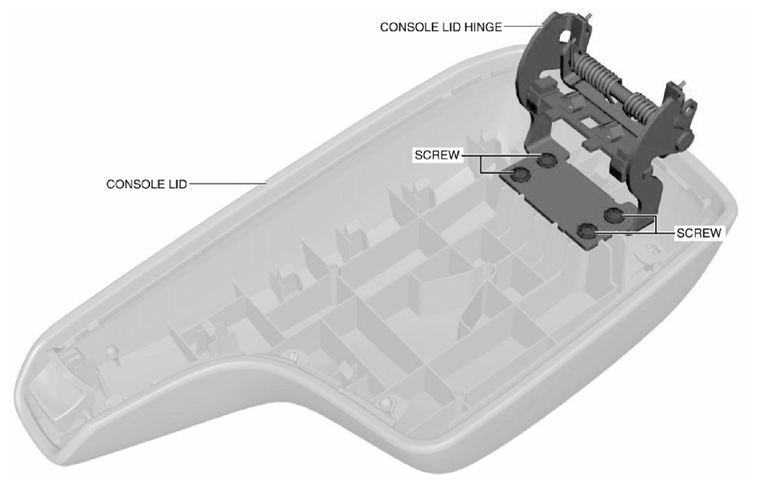

    Fig 1: Identifying Console Lid Hinge And Screw
    G10939144Courtesy of MAZDA MOTORS CORP.
  4. Remove the console lid hinge.
  5. Install in the reverse order of removal.
