Side Wall Removal/Installation
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

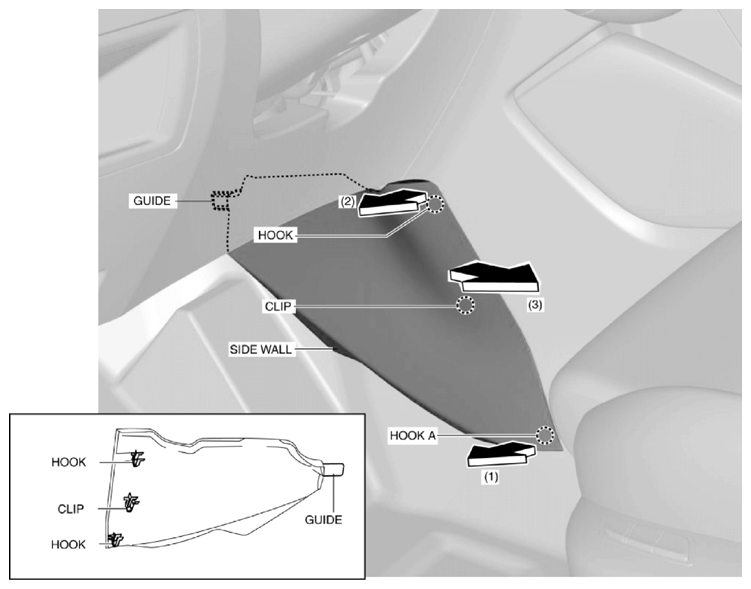

- Pull the side wall in the direction of the arrow in the order of (1), (2) and remove it while detaching hooks and clip.
- Pull the side wall in the direction of the arrow (3) and remove it while detaching the guide.CAUTION:
- If the hooks and clip is removed forcefully, guide may be damaged. Carefully remove hooks and clip so as not to damage guide.
- Install in the reverse order of removal.
