B-Pillar Lower Trim Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  2. Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
  3. Partially peel back the seaming welt.
  4. Take the shaded area shown in the figure, and pull the B-pillar lower trim in the direction of the arrow in the order of (1), (2) while detaching hooks, pins.

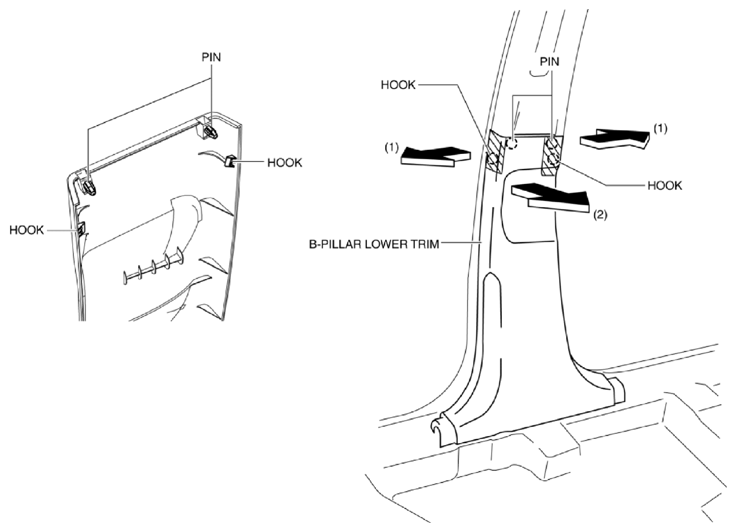

    Fig 1: Pulling B-Pillar Lower Trim
    G10939077Courtesy of MAZDA MOTORS CORP.
  5. Take the shaded area shown in the figure, and pull the B-pillar lower trim in the direction of the arrow while detaching the clips, pins.

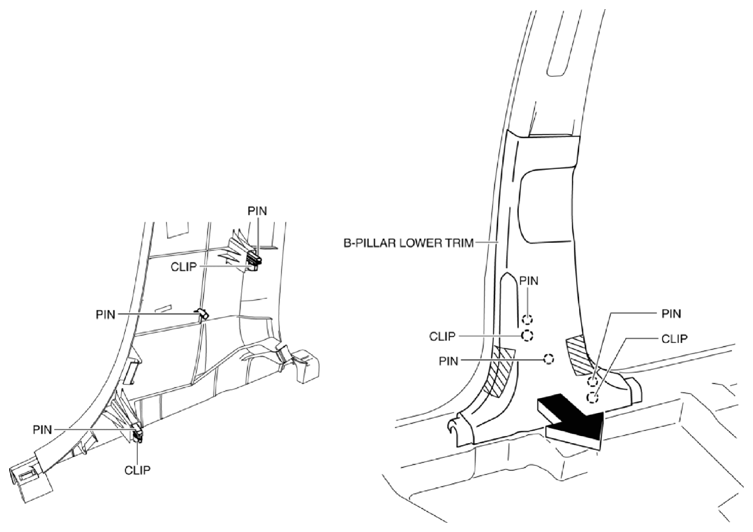

    Fig 2: Pulling B-Pillar Lower Trim
    G10939078Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
