Rear Scuff Plate Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

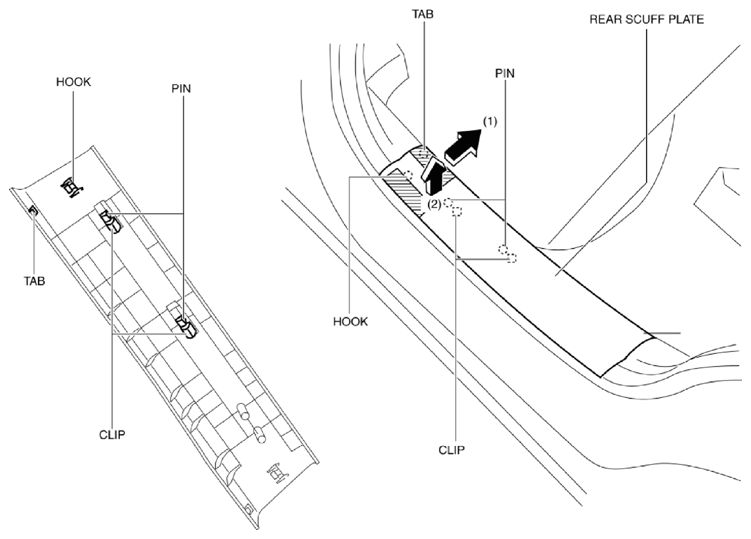

  1. Take the shaded area shown in the figure, detach tab while pulling the rear scuff plate in the direction of the arrow (1) shown in the figure, then detach hook, clips, pins while pulling in the direction of the arrow (2).
    Fig 1: Pulling Rear Scuff Plate
    G10939086Courtesy of MAZDA MOTORS CORP.

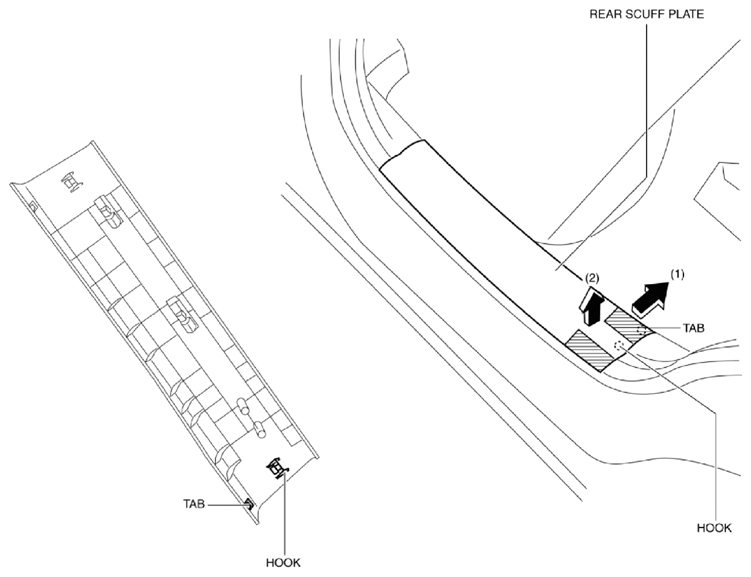

  2. Take the shaded area shown in the figure, detach tab while pulling the rear scuff plate in the direction of the arrow (1) shown in the figure, then detach the hook while pulling in the direction of the arrow (2).
    Fig 2: Pulling Rear Scuff Plate
    G10939087Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
