Dashboard Under Cover Removal/Installation
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

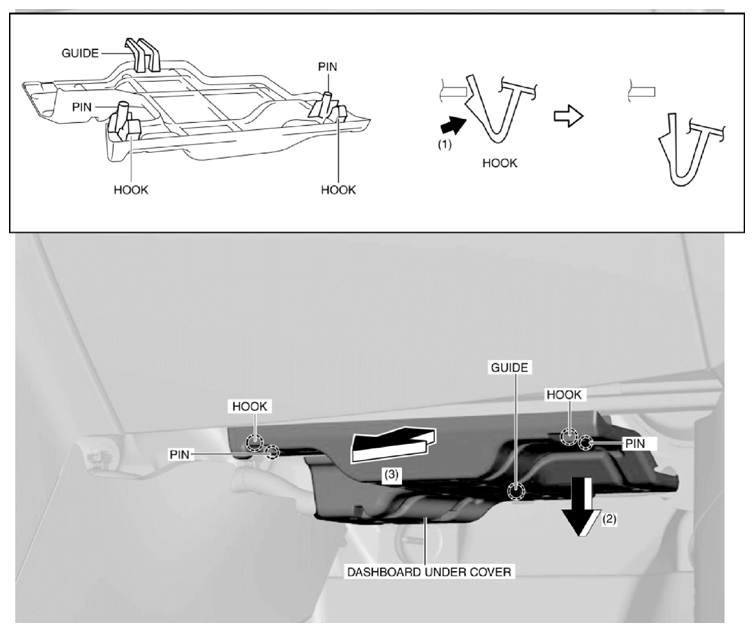

- Detach hooks in the direction of arrow (1) shown in the figure.
- Pull the dashboard under cover in the direction of arrow (2) while detaching pins.
- Remove the dashboard under cover in the direction of the arrow (3) shown in the figure while detaching the guide.CAUTION:
- If hooks and pins is removed forcefully, guide may be damaged. Carefully remove hooks and pins so as not to damage guide.
- Install in the reverse order of removal.
