Rear Door Trim Disassembly/Assembly

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order shown in the figure.

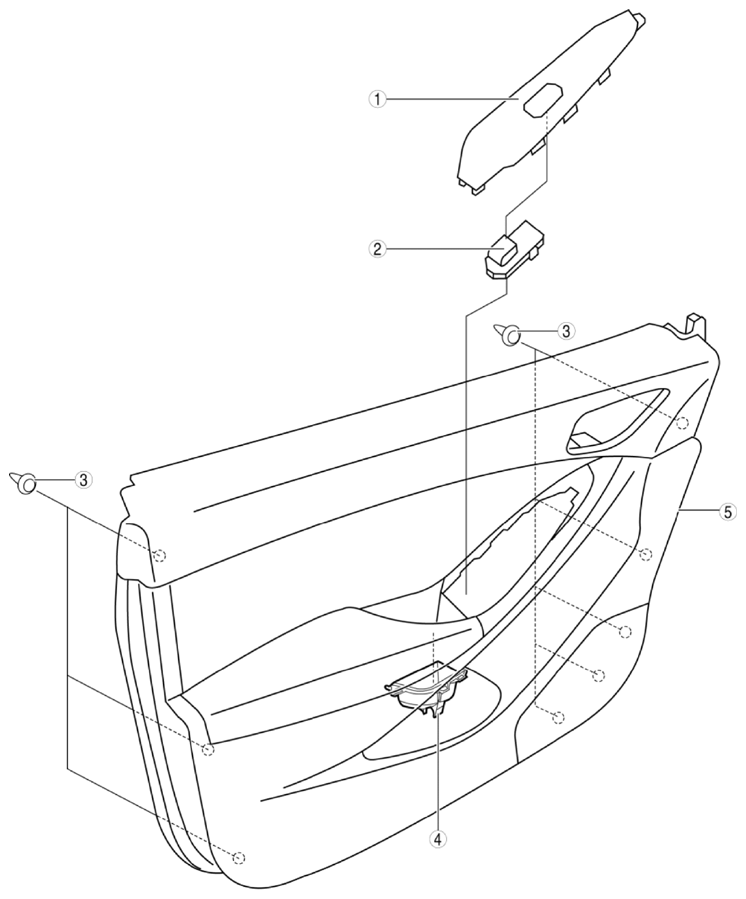

    Fig 1: Rear Door Trim Components
    G10939089Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Switch panel cover
    2 Power window subswitch
    (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
    3 Fastener
    4 Pocket
    5 Rear door trim
  2. Assemble in the reverse order of disassembly.
