Liftgate Upper Trim Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

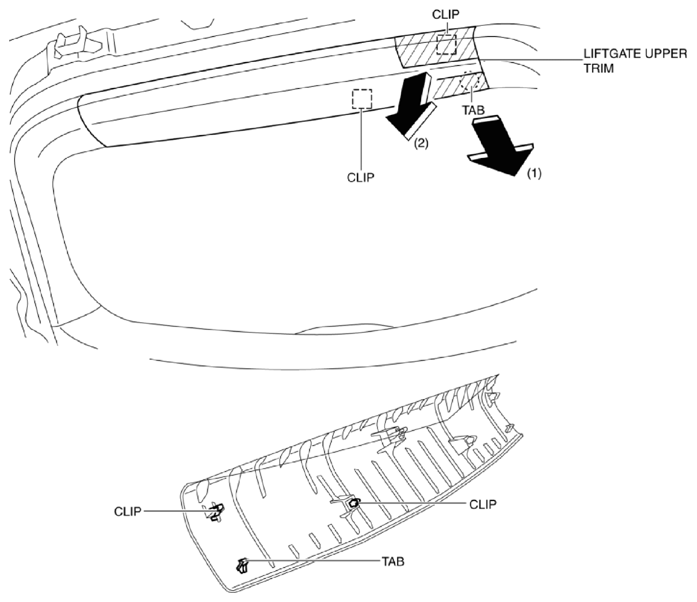

  1. Take the shaded area shown in the figure, detach tab while pulling the liftgate upper trim in the direction of the arrow (1) shown in the figure, then detach clips while pulling in the direction of the arrow (2).
    Fig 1: Pulling Liftgate Upper Trim
    G10939118Courtesy of MAZDA MOTORS CORP.

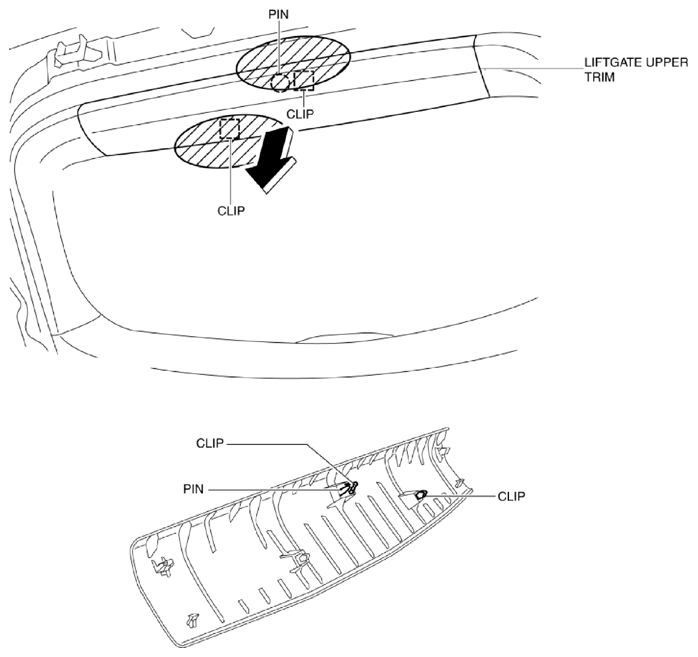

  2. Take the shaded area shown in the figure, pull the liftgate upper trim in the direction of the arrow, detach clips and pin from the liftgate.
    Fig 2: Pulling Liftgate Upper Trim
    G10939119Courtesy of MAZDA MOTORS CORP.

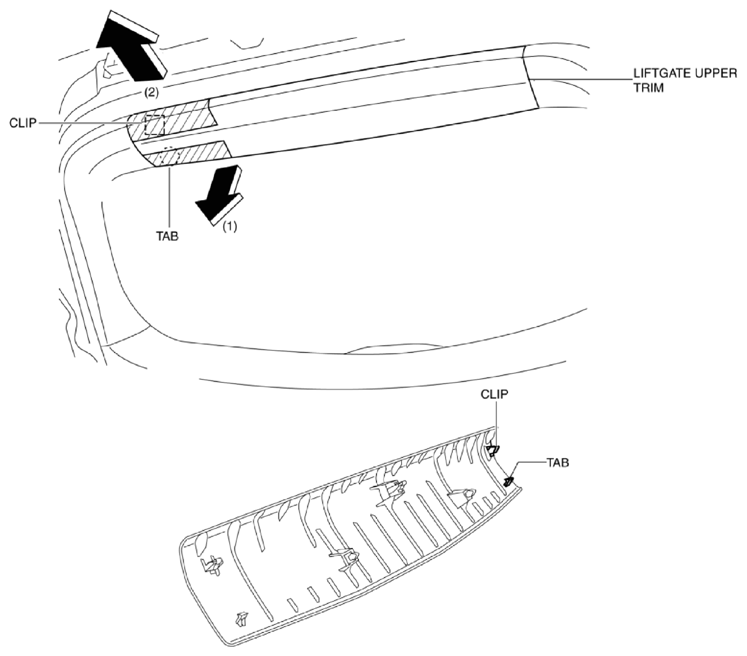

  3. Take the shaded area shown in the figure, detach tab while pulling the liftgate upper trim in the direction of the arrow (1) shown in the figure, then detach the clip while pulling in the direction of the arrow (2).
    Fig 3: Pulling Liftgate Upper Trim
    G10939120Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
