Decoration Panel Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

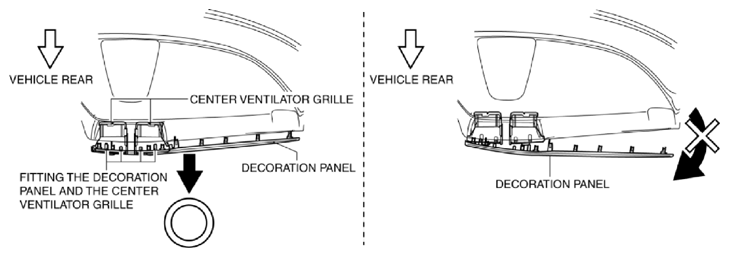

If the decoration panel is removed at the wrong angle, the center ventilator grille may detach from the decoration panel and the engagement area may be damaged. Remove the decoration panel by pulling it straight to the vehicle rear.

Fig 1: Removing Decoration Panel

Courtesy of MAZDA MOTORS CORP.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)

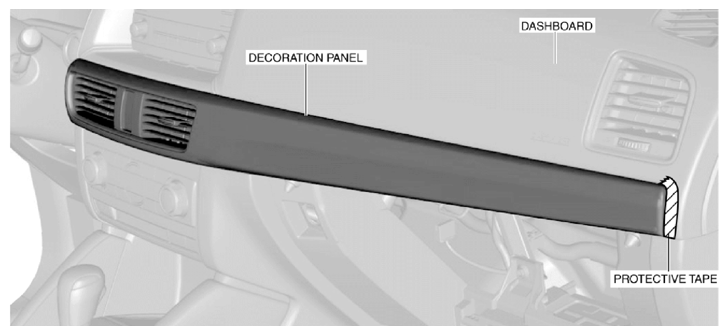

Affix protective tape to the position shown in the figure.

Fig 2: Affixing Protective Tape To Position
Courtesy of MAZDA MOTORS CORP.

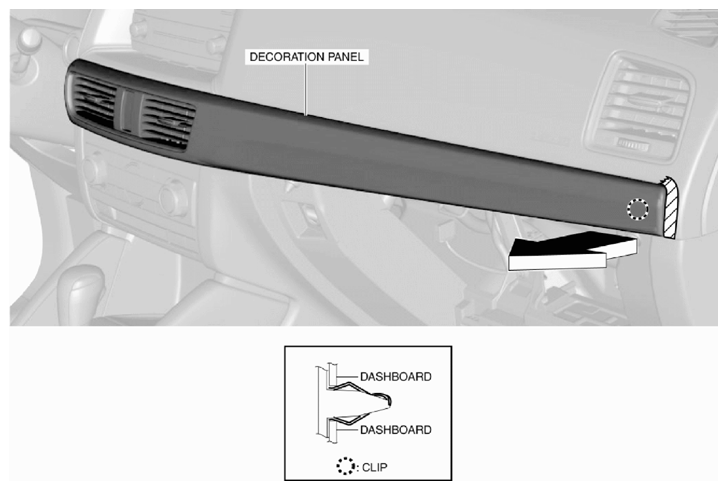

Insert your hand through the glove compartment opening and press the clip shown in the figure to detach the clip from the dashboard.

Fig 3: Detaching Clip From Dashboard
Courtesy of MAZDA MOTORS CORP.

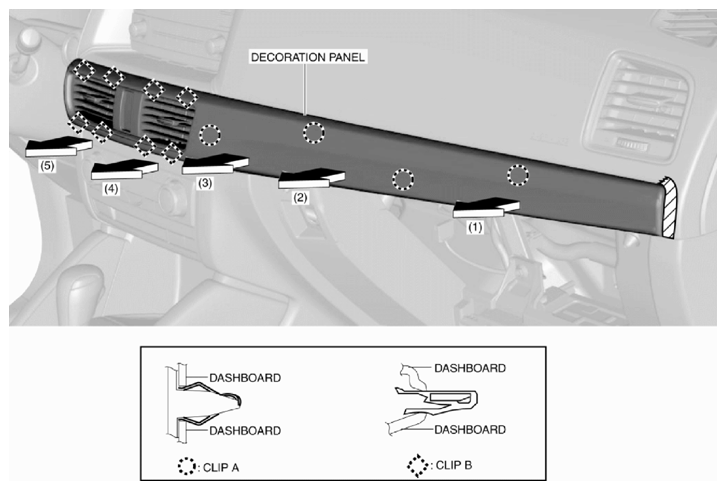

Insert the decoration panel in the order of arrows (1), (2), (3), (4) and (5) shown in the figure and detach clips A and B from the dashboard.

Fig 4: Inserting Decoration Panel
Courtesy of MAZDA MOTORS CORP.
NOTE:
- After removing the decoration panel, verify that the center ventilator grille is not detached. If the center ventilator grille is detached, install it to the decoration panel.
Disconnect the hazard switch connector.
Install in the reverse order of removal.
