Trunk End Trim Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION .)
  2. Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION .)
  3. Partially peel back the liftgate weather strip.
  4. Remove fasteners.

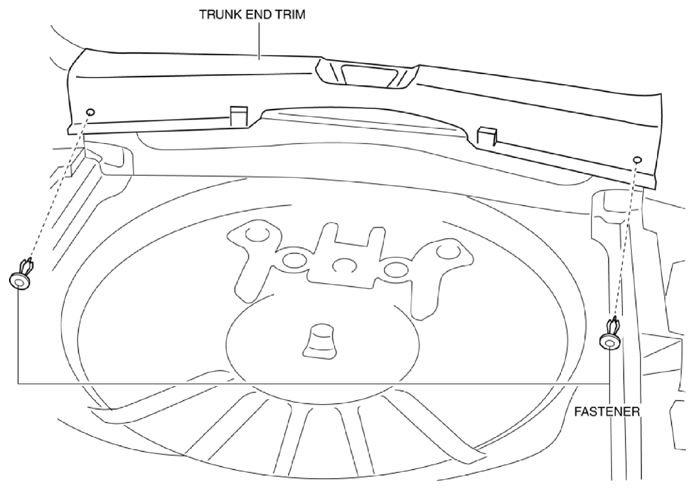

    Fig 1: Removing Trunk End Trim
    G10939090Courtesy of MAZDA MOTORS CORP.
  5. Carry the trunk end trim from the position of the arrow shown in the figure, and pull up the trunk end trim in the direction of arrow shown in the figure while disengage tabs.

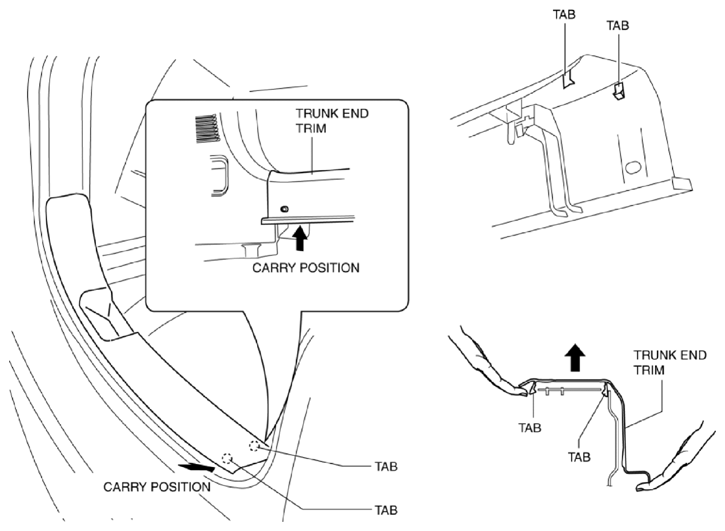

    Fig 2: Pulling Up Trunk End Trim
    G10939091Courtesy of MAZDA MOTORS CORP.
  6. Pull up the trunk end trim in the direction of arrow shown in the figure, and then remove clips and pins.

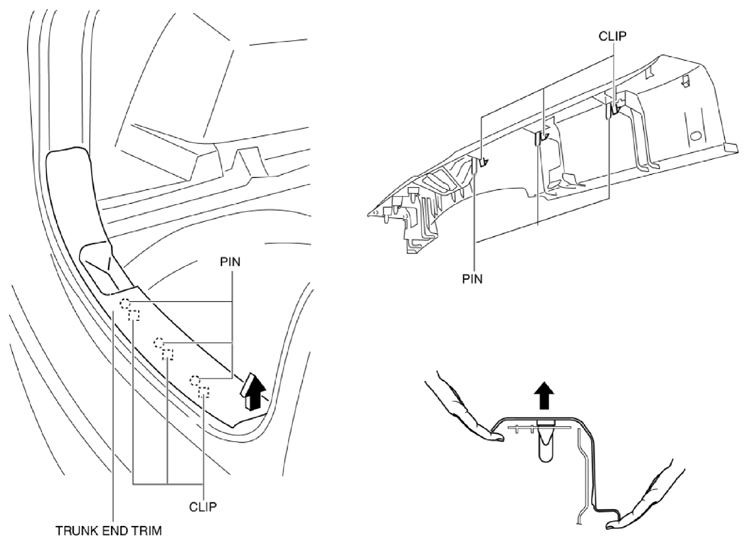

    Fig 3: Pulling Up Trunk End Trim And Clips
    G10939092Courtesy of MAZDA MOTORS CORP.
  7. Carry the trunk end trim from the position of the arrow shown in the figure, and pull up the trunk end trim in the direction of arrow shown in the figure while disengage tabs.

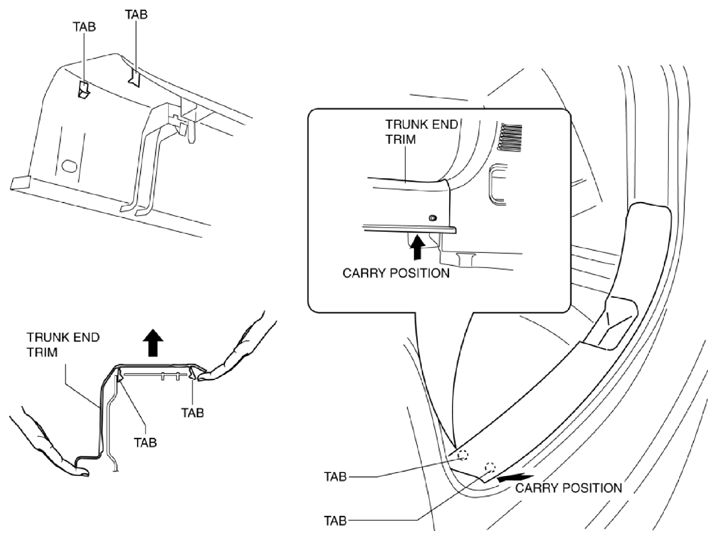

    Fig 4: Pulling Up Trunk End Trim
    G10939093Courtesy of MAZDA MOTORS CORP.
  8. Pull up the trunk end trim in the direction of arrow shown in the figure, and then remove clip and pin.

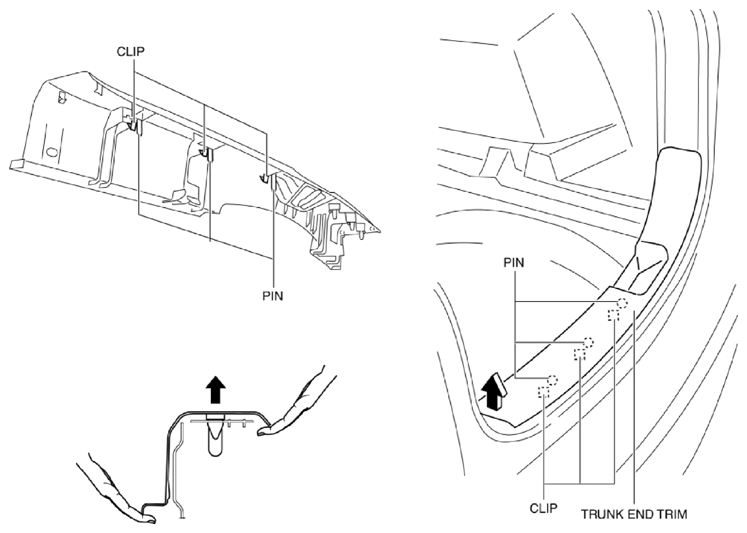

    Fig 5: Pulling Up Trunk End Trim And Clip
    G10939094Courtesy of MAZDA MOTORS CORP.
  9. Install in the reverse order of removal.
