A-Pillar Trim Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Partially peel back the seaming welt.

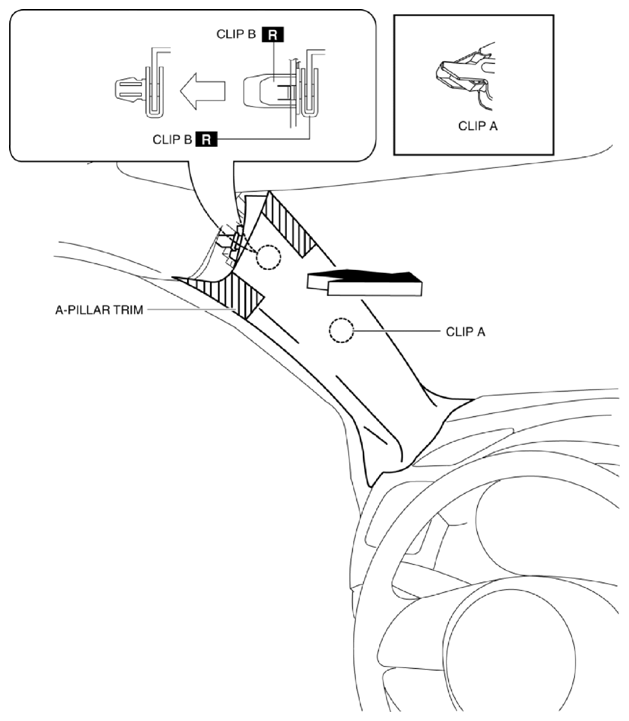

Take the shaded area shown in the figure, and pull the A-pillar trim in the direction of the arrow while detaching clip A, clips B.

Fig 1: Pulling A-Pillar Trim
Courtesy of MAZDA MOTORS CORP.

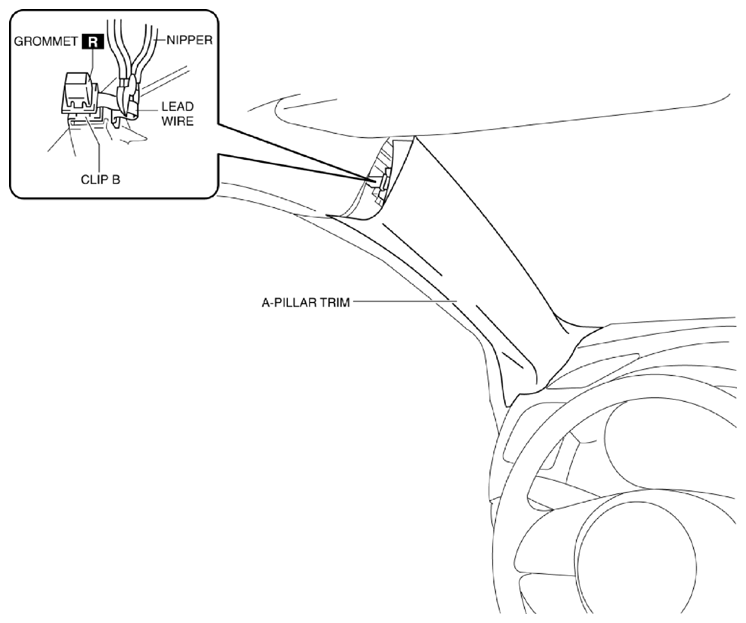

Cut the lead wire connecting clips B and grommet using a nipper.

Fig 2: Cutting Lead Wire Connecting Clips B And Grommet Using Nipper
Courtesy of MAZDA MOTORS CORP.

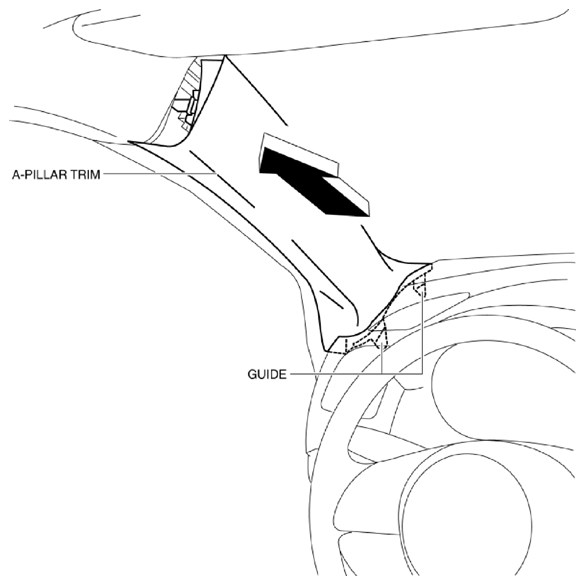

Pull the A-pillar trim in the direction of the arrow in the order of and remove the A-pillar trim while detaching guides.

Fig 3: Pulling A-Pillar Trim
Courtesy of MAZDA MOTORS CORP.

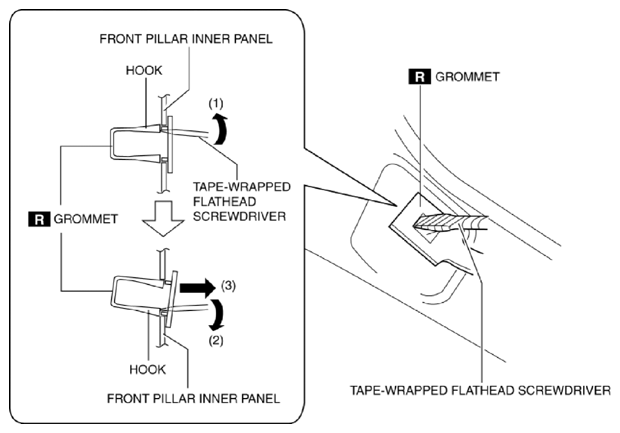

Move the hook in the direction of arrows (1) and (2) shown in the figure using a tape-wrapped flathead screwdriver and detach it from the front pillar inner panel.

Fig 4: Moving Hook
Courtesy of MAZDA MOTORS CORP.
Remove the grommet in the direction of the arrow (3) shown in the figure.
When installing the A-pillar, install new clips B and grommet to the A-pillar trim in advance.
Install in the reverse order of removal.
