Liftgate Lower Trim Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    3. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    4. Cargo compartment light (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION .)
  2. Remove the fasteners.

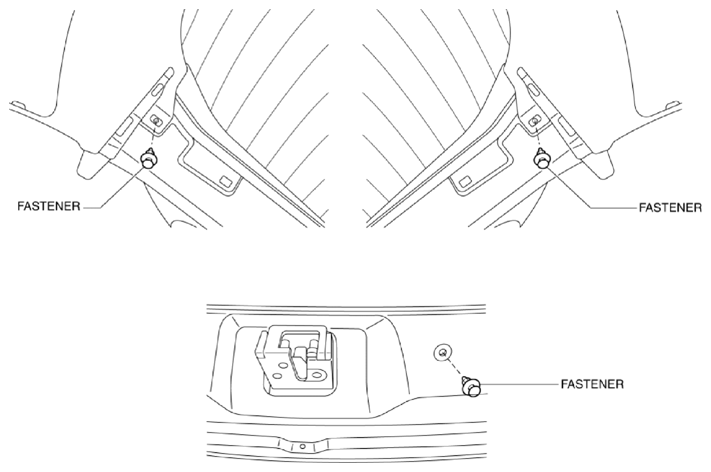

    Fig 1: Removing Fasteners
    G10939122Courtesy of MAZDA MOTORS CORP.
  3. Take the shaded area shown in the figure, and pull the liftgate lower trim in the direction of the arrow in the order of (1), (2), (3), (4) and remove it while detaching clips A, clips B and pins.

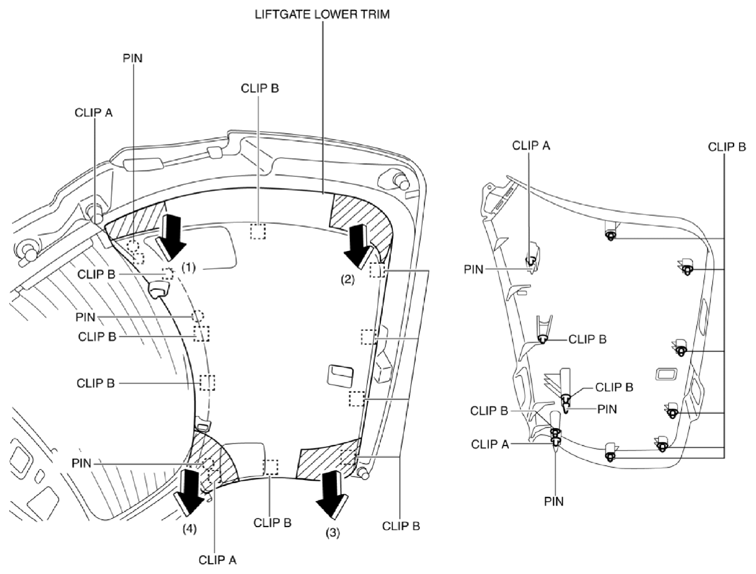

    Fig 2: Pulling Liftgate Lower Trim
    G10939123Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
