Installing starter motor
- Guide in the starter motor.

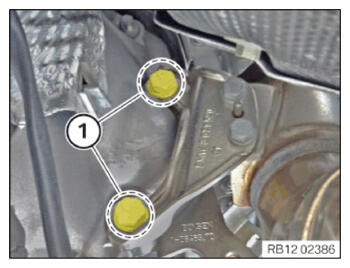

- Tighten the screws (1)
.TIGHTENING TORQUES SPECIFICATION

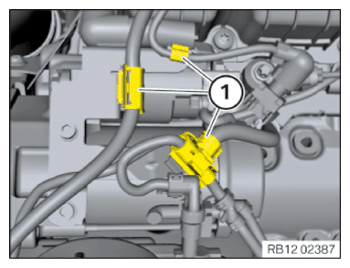

Starter motor to transmission M10x65 tightening torque 56 Nm - Secure the wiring harness mountings (1)
.
- Position the positive battery cable.
- Tighten nut (1)
.TIGHTENING TORQUES SPECIFICATION
Battery positive lead to starter Nut M8 Tightening torque 13.4 Nm - Connect plug connection (1) to the solenoid switch and lock it.
Follow-up work
- Refer to REPLACING THE LEFT AND RIGHT RADIAL SHAFT SEAL RING .
- Refer to INSTALLING ENGINE SUPPORT BRACKET RIGHT (ALL-WHEEL DRIVE) .
- Refer to INSTALLING FRONT AXLE COMPLETELY .
- Refer to TIGHTENING THE BOLTS ON THE FRONT AXLE SUPPORT .
- Refer to SECURING THE SWIVEL BEARING AT THE TOP LEFT AND RIGHT .
- Refer to REMOVING THE MOBILE LIFTING TABLE .
- Refer to ATTACHING COOLANT HOSES TO FRONT AXLE SUPPORT .
- Refer to SECURING THE UNIVERSAL JOINT ON THE STEERING GEAR .
- Refer to ATTACHING THE THERMOSTAT OR TRANSMISSION OIL COOLER LINE ON THE FRONT SUBFRAME .
- Refer to IF INSTALLED: CONNECTING THE CONNECTOR OF THE ACTIVE STABILIZER .
- Refer to IF INSTALLED: SECURING THE LINE FOR THE VERTICAL ACCELERATION SENSOR ON THE RIGHT AND LEFT .
- Refer to ATTACHING THE CABLE OF THE WHEEL RPM SENSOR ON THE LEFT AND RIGHT .
- Refer to SECURING THE FRONT LEFT AND RIGHT BRAKE CALIPER .
- Refer to INSTALLING THE LEFT-HAND AND RIGHT-HAND CRASH LEVER .
- Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
- Refer to SECURING THE WIRING HARNESS FOR THE EPS ON THE FRONT AXLE SUPPORT .
- Refer to INSTALLING THE OUTPUT SHAFT ON LEFT AND RIGHT .
- Refer to CHECK/ADD FRONT AXLE TRANSMISSION OIL .
- Refer to INSTALLING THE LEFT AND RIGHT SPRING STRUT HOLDER .
- Refer to INSTALLING THE RIGHT REINFORCEMENT STRUT .
- Refer to INSTALLING THE TORSION STRUT LEFT AND RIGHT .
- Refer to REMOVING UNDERBODY PROTECTION AT SIDE RIGHT AND LEFT .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
- Refer to INSTALLING FRONT STIFFENING PLATE AND/OR UNDERBODY PROTECTION OF THE STEERING GEAR .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to FASTENING THE FRONT LEFT AND RIGHT SPRING STRUT .
- Refer to REMOVING ENGINE BRIDGE .
- Refer to INSTALLING THE CONTROL UNIT BRACKET FOR CYLINDERS 5 TO 8 .
- Refer to INSTALLING THE COVER OF THE LEFT DME CONTROL UNIT .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
- Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to PLACING THE BRAKE PADS ON THE BRAKE DISK/PUTTING THEM INTO OPERATION .
