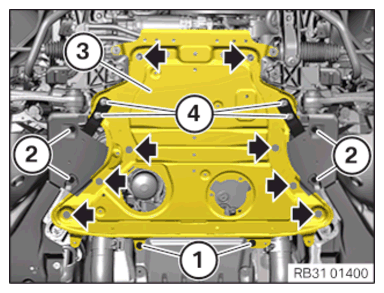

Install the stiffening plate

• Insert stiffening plate (3)  and position.
• Replace the bolts (arrows).

  Parts:  Screws

• Tighten screws (arrows).
  TIGHTENING TORQUES SPECIFICATION



  Thrust field to front axle support
  M8 Replace screws.	Joining torque	25 Nm
  	Angle of rotation	70°

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (2)  .
  TIGHTENING TORQUES SPECIFICATION



  Cover, steering unit
  screw	Tightening torque	3 Nm

• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Underbody protection
  screw	Tightening torque	3 Nm

• Replace screws (4)  .

  Parts:  Screws

• Tighten the screws (4)  .
  TIGHTENING TORQUES SPECIFICATION



  Torsion strut to front subframe
  M8 Replace screws.	Tightening torque	28 Nm
  	Angle of rotation	135°

Follow-up work

• Refer to INSTALLING FRONT STIFFENING PLATE .
• Refer to ATTACHING THE FRONT UNDERBODY PROTECTION .
