Install the sealing cap on the cylinder head of cylinder bank 1

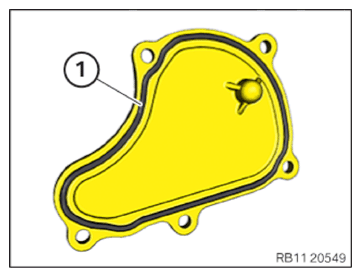

Replace the seal (1).
Parts: Seal

Courtesy of BMW OF NORTH AMERICA, INC.

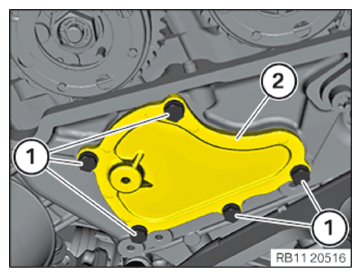

Position the sealing cap (2) on the cylinder head.
Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Sealing cap to cylinder head
M6x20 screw	Tightening torque	9.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE PRESSURE LINE BETWEEN THE EVAPORATOR AND AIR CONDITIONING CONDENSER .
Refer to INSTALLING THE LEFT CYLINDER HEAD COVER .
Refer to INSTALLING OIL FEED LINE ON EXHAUST TURBOCHARGER CYLINDERS 5 TO 8 .
Refer to INSTALLING FRONT HEAT SHIELD .
Refer to INSTALLING VANOS SOLENOID ACTUATOR, INTAKE OF CYLINDER BANK 2 .
Refer to INSTALLING THE VANOS SOLENOID ACTUATOR EXHAUST OF CYLINDER BANK 2 .
Refer to INSTALLING THE LEFT HIGH PRESSURE PUMP .
Refer to INSTALLING FUEL DELIVERY LINE .
Refer to INSTALLING THE INJECTORS FOR THE CYLINDERS 5 TO 8 .
Refer to INSTALLING THE HIGH-PRESSURE RAIL ON THE LEFT .
Refer to INSTALLING THE IGNITION COILS OF CYLINDER BANK 2 .
Refer to INSTALLING THE IGNITION COILS OF CYLINDERS 1 AND 5 .
Refer to INSTALLING BOTH EXHAUST TURBOCHARGERS .
Refer to INSTALLING THE CLEAN AIR PIPE OF CYLINDER BANK 2 .
Refer to INSTALLING CLEAN AIR PIPE OF CYLINDER BANK 1 .
Refer to INSTALLING BOTH CHARGE AIR COOLERS .
Refer to CONNECTING THE RIGHT CHARGE AIR LINE TO THE EXHAUST TURBOCHARGER .
Refer to CONNECTING THE LEFT CHARGE AIR LINE TO THE EXHAUST TURBOCHARGER .
Refer to CLOSING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
Refer to INSTALLING THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE COOLANT CIRCUIT (CHARGE AIR COOLER) .
Refer to SEALING OFF COOLANT FOR LOW-TEMPERATURE COOLANT CIRCUIT .
Refer to INSTALLING COOLANT PUMPS .
Refer to INSTALLING THE BELT TENSIONER .
Refer to INSTALLING THE BELT PULLEY ON THE TORSIONAL VIBRATION DAMPER .
Refer to INSTALLING DRIVE BELT .
Refer to INSTALLING FAN COWL .
Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
Refer to INSTALLING FRONT CROSS CONNECTION (FRONT-END STRUT REMOVED) .
Refer to INSTALLING BOTH FRONT-END STRUTS .
Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT CENTER .
Refer to INSTALLING THE CATALYTIC CONVERTER FOR CYLINDERS 5 TO 8 .
Refer to RELEASING THE HEAT SHIELD .
Refer to INSTALLING THE CENTER COWL UPPER PART .
Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
Refer to INSTALLING WINDSHIELD PANEL COVER .
Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
Refer to INSTALLING RIGHT HEAT SHIELD .
Refer to INSTALLING LEFT HEAT SHIELD .
Refer to INSTALLING HEAT SHIELD, TOP .
Refer to INSTALLING THE RIGHT OXYGEN SENSOR MONITOR .
Refer to INSTALLING THE LEFT OXYGEN SENSOR MONITOR .
Refer to PARTIALLY INSTALLING THE RIGHT LAMBDA OXYGEN SENSOR .
Refer to PARTIALLY INSTALLING THE LEFT LAMBDA OXYGEN SENSOR .
Refer to INSTALLING THE RETAINING BRIDGE IN VEHICLES WITH A GASOLINE PARTICULATE FILTER .
Refer to INSTALLING THE RETAINING BRIDGE .
Refer to INSTALLING EXHAUST SYSTEM .
Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
Refer to IF INSTALLED: INSTALLING THE TORSION STRUT ON THE RIGHT, AND ON THE LEFT WHERE REQUIRED .
Refer to INSTALLING THE REAR DIFFUSER .
Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
Refer to INSTALLING THE FRONT LEFT BOTTOM WHEEL ARCH COVER .
Refer to INSTALLING THE FRONT BOTTOM RIGHT WHEEL ARCH COVER .
Refer to INSTALLING THE CONTROL UNIT BRACKET FOR CYLINDERS 5 TO 8 .
Refer to INSTALLING THE COVER OF THE LEFT DME CONTROL UNIT .
Refer to INSTALLING CONTROL UNIT HOLDER FOR CYLINDERS 1 TO 4 .
Refer to INSTALLING THE COVER OF THE RIGHT DME CONTROL UNIT .
Refer to CONNECTING ALL BATTERY GROUND LEADS .
Refer to FILLING AND VENTING THE LOW-TEMPERATURE COOLANT CIRCUIT .
Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
Refer to EVACUATING AND CHARGING CONDITIONING .
