Install left heat shield

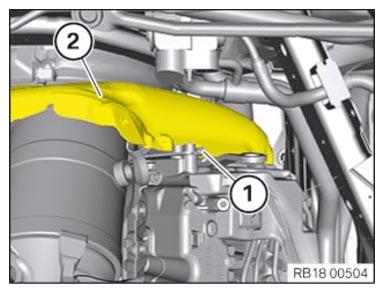

- Feed in left heat shield (2) and connect to the other heat shields.

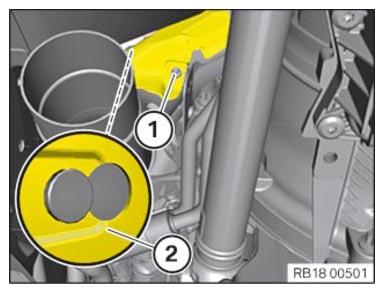

- Tighten the screw (1)
at the top of heat shield (2)
.TIGHTENING TORQUES SPECIFICATION
Heat protection plate M6x16 tightening torque 10 Nm - Connect the heat shield (2) with the heat shield below.

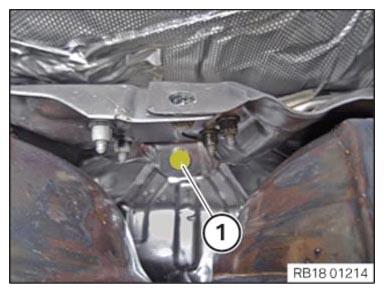

- Tighten the screw (1)
at the bottom of heat shield (2)
.TIGHTENING TORQUES SPECIFICATION

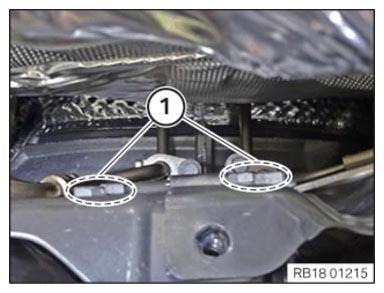

Heat protection plate M6x16 tightening torque 10 Nm - Tighten down screw (1)
.
- Version with S1DFA:
Position the holder of the pressure lines.
Tighten screws in areas (1) .
