Install the ignition coils of cylinder bank 2
Precondition
Ignition is switched off.
NOTE:
RISK OF DAMAGE
Damage to the ignition coil.
The silicone hose of the ignition coil must not be contaminated by fuel as this can lead to failure of the ignition coil.
Damage to the ignition coil.
The silicone hose of the ignition coil must not be contaminated by fuel as this can lead to failure of the ignition coil.
- When working on the fuel system, cover the ignition coils with suitable materials and remove where required.
- Do not oil or grease the silicone tube of the spark plug socket. Do not use any protection or maintenance products (e.g. silicone spray, rubber care products, rust remover, etc.).

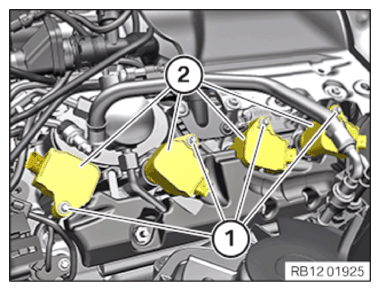

- Feed in the ignition coils (2) and install them.
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Ignition coil | ||
|---|---|---|
| screw | Tightening torque | 8 Nm |

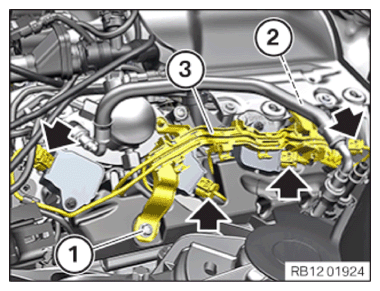

- Feed in and install the cable clip (3).
- Tighten down screw (2).
TIGHTENING TORQUE SPECIFICATIONS
| Wiring harness on the cylinder head cover | ||
|---|---|---|
| M6x16 screw | Tightening torque | 10 Nm |
| Nut M6 | Tightening torque | 10 Nm |
- Tighten nut (1).
TIGHTENING TORQUE SPECIFICATIONS
| Wiring harness on the cylinder head cover | ||
|---|---|---|
| M6x16 screw | Tightening torque | 10 Nm |
| Nut M6 | Tightening torque | 10 Nm |
- Connect and lock connectors (arrows).
The connectors (arrows) must audibly engage.

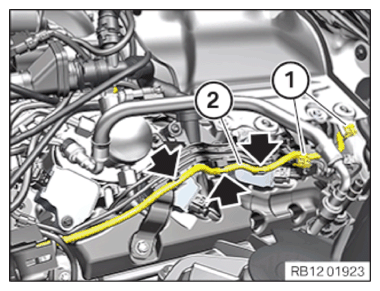

- Feed the cable (2) into the bracket (arrows).
- Secure clamps (1).
