Installing the front left bottom wheel arch cover
NOTE:
Description is for left component only. Procedure on the right side is identical.
NOTE:

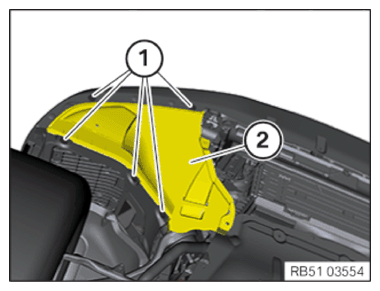

To provide a better overview: Schematic diagram with partially hidden components.
- Guide the wheel arch cover (2) in.
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Wheel arch cover (screws) | ||
|---|---|---|
| Thermoplastic hexagon screw | Tightening torque | 3 Nm |
