Install exhaust system

Courtesy of BMW OF NORTH AMERICA, INC.

• Version A:

  Open the weld seam (1)  with a conventional tool.

• Remove the current clamp (2)  .
  NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.
• Check all rubber mounts (1)  of the exhaust system for damage and replace, if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Guide in and install the exhaust system with three people.
• Replace nuts (2)  .

  Parts:  Nuts

• Tighten nuts (2)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Rear silencer to bumper bracket/body
  Nut M8 Replace nut.	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the connector (1)  on the left and right.

  The connectors (1)  must engage audibly.

• Position the exhaust bracket.
• If fitted:

  Position the ground strap (2)  .

  Tighten down screw (1)  .

  TIGHTENING TORQUE SPECIFICATIONS



  Exhaust system to rear axle carrier
  M8x25 Replace screw.	Tightening torque	28 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (3)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Exhaust system to rear axle carrier
  M8x25 Replace screw.	Tightening torque	28 Nm

• Position the holder of the exhaust system (2)  .
• Tighten down screw (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Exhaust system to rear axle carrier
  M8x25 Replace screw.	Tightening torque	28 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Version A:

  If necessary, replace clamp (1)  .

  Parts:  Circlip

• Connect exhaust system to catalytic converters.
• Tighten the clamp (1)  on the left.

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATIONS



  Exhaust system/front silencer to catalytic converter
  cl. If necessary, replace clamp.	Tightening torque	55 Nm

• Version A:

  If necessary, replace clamp (1)  .

  Parts:  Circlip

• Tighten the clamp (1)  on the right.

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATIONS



  Exhaust system/front silencer to catalytic converter
  cl. If necessary, replace clamp.	Tightening torque	55 Nm

• Version B:

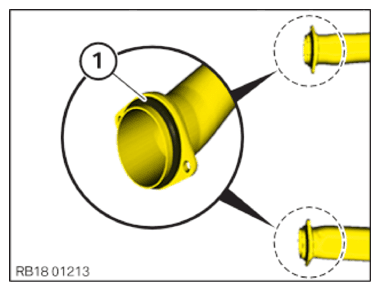

  Replace the seals (1)  .

  Parts:  Seals

  Courtesy of BMW OF NORTH AMERICA, INC.

• Version B:

  Replace nuts (1)  .

  Parts:  Nuts

• Tighten nuts (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Exhaust system to catalytic converter
  Nut M8	Tightening torque	10 Nm
  	Tightening torque	28 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Version B:

  Replace nuts (1)  .

  Parts:  Nuts

• Version B:

  Tighten nuts (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Version B:

  Tighten the union nuts (1)  .

  TIGHTENING TORQUE SPECIFICATIONS



  Pressure line to exhaust system
  Coupling nut	Tightening torque	20 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Version B:

  Tighten the union nuts (1)  .

  TIGHTENING TORQUE SPECIFICATIONS



  Pressure line to exhaust system
  Coupling nut	Tightening torque	20 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Description is for left component only. Procedure on the right side is identical.
• Install the trim for exhaust tailpipe (2)  .
• Tighten down screws (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Exhaust cover on guide
  Hexagon screw	Tightening torque	2.7 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Detents, guides and mounting elements must not be damaged or missing.
• Position trim (1)  and clip it into bumper cover (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Detents, guides and mounting elements must not be damaged or missing.
• Position trim (1)  and clip it into the bumper cover.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
• Refer to IF INSTALLED: INSTALLING THE TORSION STRUT ON THE RIGHT, AND ON THE LEFT WHERE REQUIRED .
• Refer to INSTALLING THE REAR DIFFUSER .
