Installing the clean air pipe of cylinder bank 2

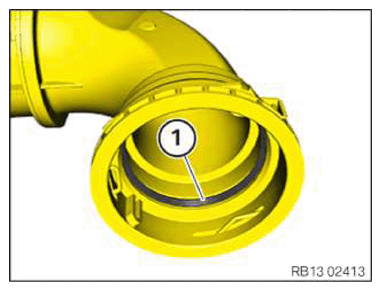

Check sealing ring (1) for damage, replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

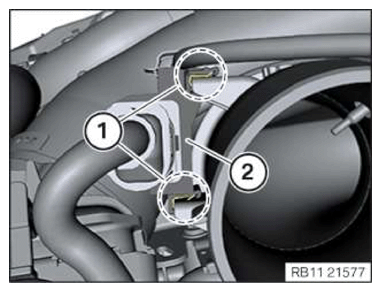

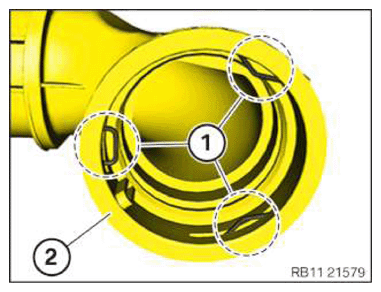

Before installing the clean air pipe (2) , move the retaining clip into the locked position (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

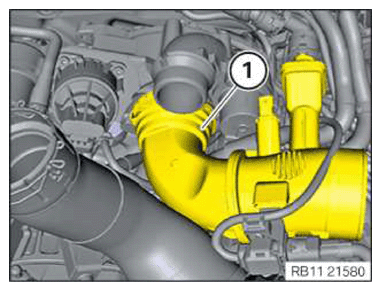

Position the clean air tube (1) .
Press the clean air pipe (1) toward the turbocharger until the retaining clip audibly locks.

Courtesy of BMW OF NORTH AMERICA, INC.
Clip in the wiring harness mounting (2) on the fastening clamps (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

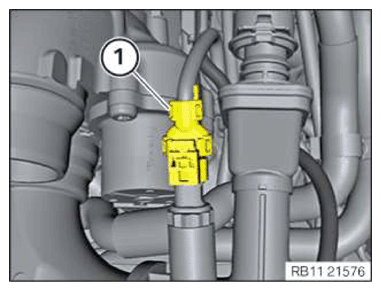

Make sure that the connector of the high-pressure pump (1) is not confused with the connector of the intake air temperature sensor.
If not yet available: Attach colored marks (3) to the plug connections of the high pressure pump.
If necessary, identify the connectors using the wiring diagram and the cable colors in the area (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Make sure that the connector of the intake air temperature sensor (1) is not confused with the connector of the high pressure pump.
If necessary, identify the connectors using the wiring diagram and the cable colors in the area (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

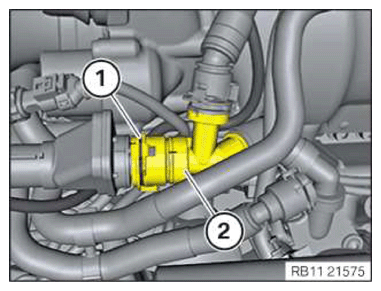

Position the tank ventilation line (1) .
Press the tank vent line (1) toward the clean air pipe until the retaining clip audibly locks.
