Install right heat shield
- Thread in right heat shield C and connect with the other heat shield.

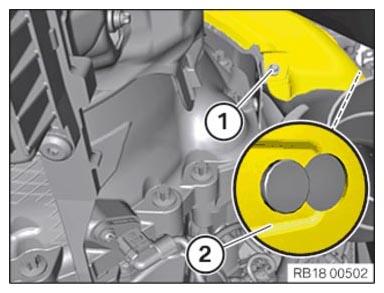

- Tighten the screw (1)
at the top of heat shield (2)
.TIGHTENING TORQUES SPECIFICATION
Heat protection plate M6x16 tightening torque 10 Nm - Connect the heat shield (2) with the heat shield below.

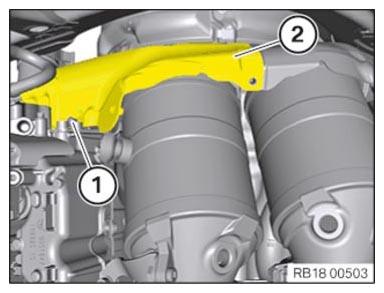

- Tighten the screw (1) at the bottom of heat shield (2) .
TIGHTENING TORQUES SPECIFICATION
| Heat protection plate | ||
| M6x16 | tightening torque | 10 Nm |
