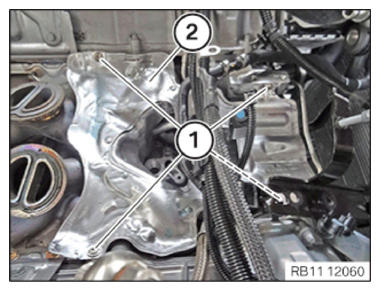

Installing front heat shield
- Insert and install the front heat shield (2) .
- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Heat protection plate M6x12 screw

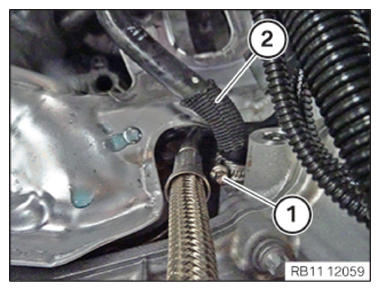

Replace screw.tightening torque 10 Nm - Route the coolant line (2) and connect it to the cylinder head.
- Tighten clamp (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Coolant line to cylinder head | ||
| cl. | tightening torque | 1.5 Nm |
