Installing the belt tensioner

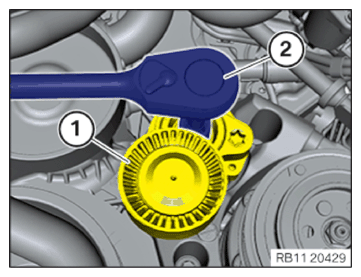

- Position belt tensioner (1)
.
- Tighten the screw on the belt tensioner with a suitable socket wrench (2)
.
TIGHTENING TORQUE SPECIFICATIONS
| Belt tensioner |
| M10 |
Tightening torque |
40 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
