Install the connecting supports on the tunnel

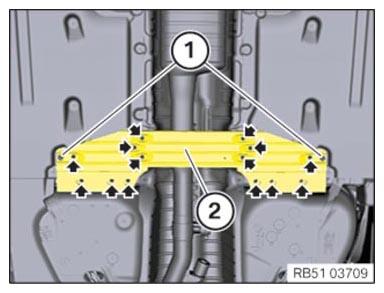

- Version A:
Install the connecting support (2) on the tunnel.
Tighten screws (arrows).
Tighten down screws (1) .

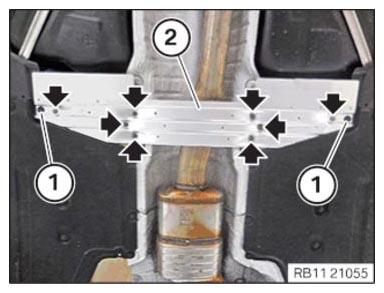

TIGHTENING TORQUES SPECIFICATIONConnecting support to tunnel M8x25 screw tightening torque 20 Nm Screw tightening torque 3 Nm - Version B:
Install the connecting support (2) on the tunnel.
Tighten screws (arrows).
Tighten down screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Connecting support to tunnel | ||
| M8x25 screw | tightening torque | 20 Nm |
| Screw | tightening torque | 3 Nm |
