Installing the catalytic converter for cylinders 5 to 8

• Replace seals on exhaust turbocharger.

  Parts:  Seals

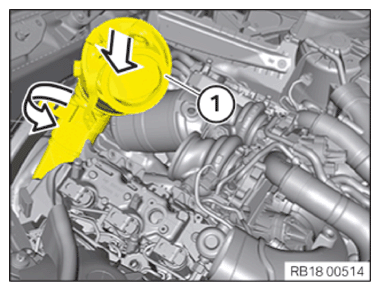

• Guide in and install the catalytic converter (1)  for cylinders 5 to 8 in the arrow direction.
• Connect the catalytic converter (1)  for cylinders 5 to 8 to the exhaust turbocharger.

  Courtesy of BMW OF NORTH AMERICA, INC.

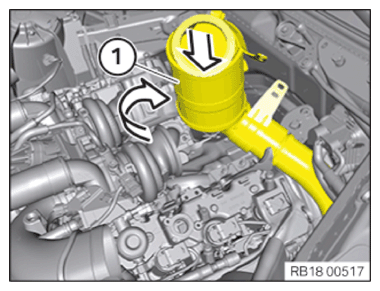

• Guide in and install the catalytic converter (1)  for cylinders 1 to 4 in the arrow direction.
• Connect the catalytic converter (1)  for cylinders 1 to 4 to the exhaust gas turbocharger.

  Courtesy of BMW OF NORTH AMERICA, INC.

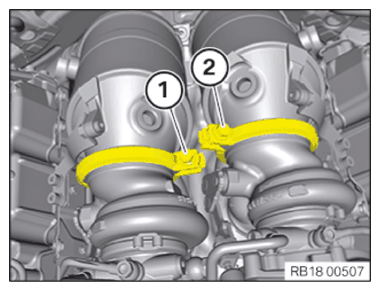

• Replace clamps (1)  and (2)  .

  Parts:  Clamps

• Mount clamps (1)  and (2)  and tighten.

  The circlips (1)  and (2)  must be mounted with the screw connection to the inside.

  TIGHTENING TORQUE SPECIFICATIONS



  Catalytic converter to exhaust turbocharger
  cl Replace clamp after disassembly.	Tightening torque	14 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

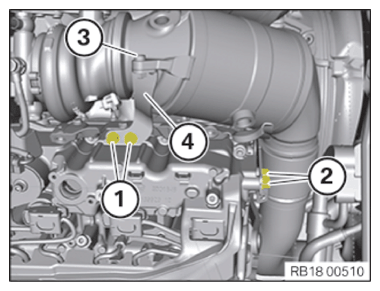

• Install holder (4)  .
• Tighten down screws (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Catalytic converter on cylinder head/cylinder head cover/holder
  M8x20	tightening torque	21 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (2)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Catalytic converter on cylinder head/cylinder head cover/holder
  M8x20	tightening torque	21 Nm

• Tighten down screw (3)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Catalytic converter on cylinder head/cylinder head cover/holder
  M8x20	tightening torque	21 Nm

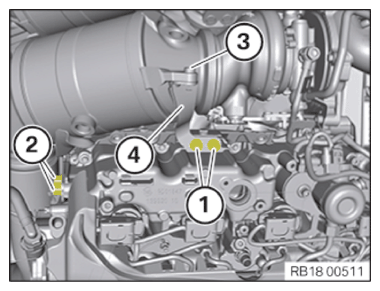

• Install holder (4)  .
• Tighten down screws (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Catalytic converter on cylinder head/cylinder head cover/holder
  M8x20	tightening torque	21 Nm

• Tighten down screws (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATIONS



  Catalytic converter on cylinder head/cylinder head cover/holder
  M8x20	tightening torque	21 Nm

• Tighten down screw (3)  .

For equipment specification without SA1DC gasoline particulate filter

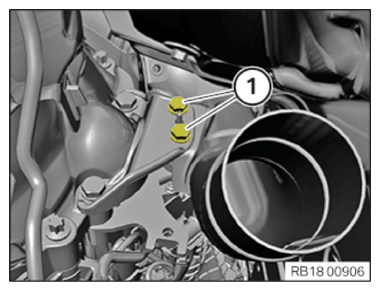

• Mount the catalytic converter for the cylinders 1 to 4 on the holder.
• Replace screws (1)  .

  Parts:  Screws

• Tighten down screws (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Catalytic converter to holder
  M8x20 Replace screw.	tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Mount the catalytic converter for cylinders 5 through 8 on the holder.
• Replace nuts (1)  .

  Parts:  Nuts

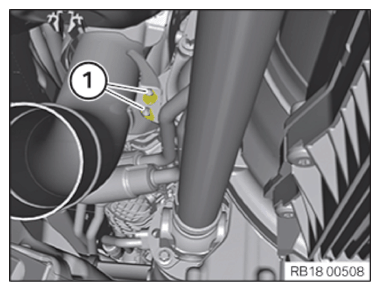

• Tighten nuts (1)  .
