If installed: Install the torsion strut on the right, and on the left where required
Install right torsion strut
NOTE:
Description is for left component only. Procedure on the right side is identical.

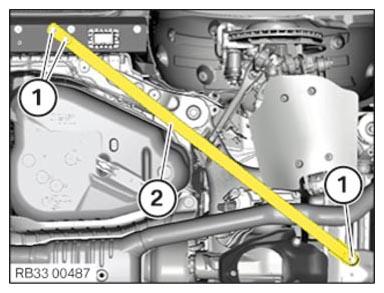

- Thread in torsion strut (2) and install.
- Replace screws (1).
Parts: Screws
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Torsion strut to mounting | ||
| M12 Replace screws. |
tightening torque | 100 Nm |
| Angle of rotation | 90° | |
NOTE:
Description is for left component only. Procedure on the right side is identical.

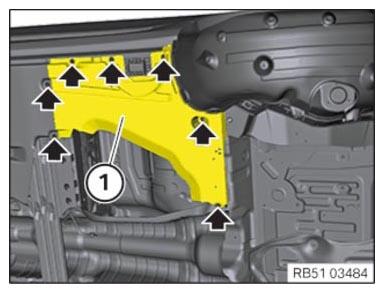

- Thread in the tank cover (1) and install.
- Tighten screws (arrows).
TIGHTENING TORQUES SPECIFICATION
| Undershield | ||
| screw | tightening torque | 2.6 Nm |
| Plastic nut | tightening torque | 2.6 Nm |
If it is a dual-branch exhaust system: Install the left torsion strut
- Thread in torsion strut (2) and install.
- Replace screws (1).
Parts: Screws
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Torsion strut to mounting | ||
| M12 Replace screws. |
tightening torque | 100 Nm |
| Angle of rotation | 90° | |
- Thread in the tank cover (1) and install.
- Tighten screws (arrows).
TIGHTENING TORQUES SPECIFICATION
| Undershield | ||
| screw | tightening torque | 2.6 Nm |
| Plastic nut | tightening torque | 2.6 Nm |
