Installing the belt pulley on the torsional vibration damper

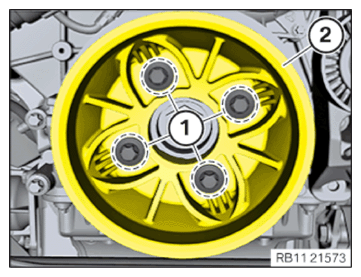

• Position the belt pulley (2)  .
• Tighten down screws (1)  .

TIGHTENING TORQUE SPECIFICATIONS

Belt pulley on torsional vibration damper
M10 screw	Tightening torque	40 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
