Install the high-pressure rail on the left

NOTE: TECHNICAL INFORMATION
When assembling, it is essential to observe screwing sequences and tightening torques.
Failure to comply with the regulations can lead to leaks and damage.

NOTE: The description is provided only at one component. The procedure is the same for all other components.

• Loosen screws (1)  .
• Slacken hold-down device (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: RISK OF DAMAGE
  Always install the high pressure line or rail free of distortion. To ensure distortion-free installation of the high pressure line and to avoid damaging the thread, it must be possible for both nuts to be screwed on to the injectors easily hand force.
• First insert the rail (2)  at the high pressure pump connector, then lower it to the point where the ball heads are positioned inside the injector connections and the rail is correctly positioned.

  Courtesy of BMW OF NORTH AMERICA, INC.

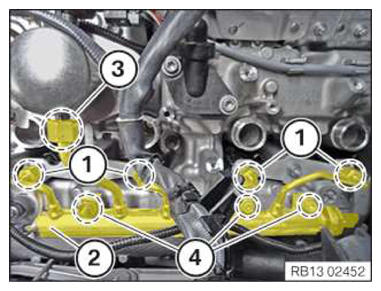

• Hand-tighten the nuts (1)  on the injectors.
• Hand-tighten the nut (3)  of the high pressure pump.
• Screw in and hand-tighten the screws (4)  .
• Tighten down screws (4)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Rail to cylinder head cover
  M6x25 screw	Tightening torque	10 Nm

  NOTE: The description is provided only at one component. The procedure is the same for all other components.
• Tighten down screws (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATIONS



  Hold-down device to cylinder head cover
  screw	Tightening torque	13 Nm

• Tighten nuts (1) on the injectors with the special tool 0 491 277 (13 5 020)  .
  TIGHTENING TORQUE SPECIFICATIONS



  High-pressure rail to injectors
  Nuts	Tightening torque	23 Nm

• Tighten nut (3)  on the high pressure pump with the special tool 0 495 908 (37 1 150)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATIONS



  Fuel supply line/rail to high pressure pump
  Nut	tightening torque	30 Nm

• Tighten down screws (4)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Rail to cylinder head cover
  M6x25 screw	Tightening torque	10 Nm

• Connect connectors (1)  and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
